SDO HMI 2014-05-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.02 | 218.16 | 47.32 | 199.44 | -11.40 | 78.76 | -56.90 | 102.33 | 0.8419 | -90.2 | -115.1 | |
|
previous
or next observation for the same group /

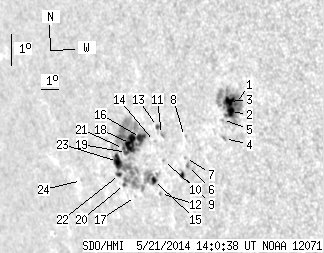

back to the solar disc SDO HMI 2014-05-21 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 52.47 | 0.73 | 42.96 | -10.30 | 83.48 | -52.18 | 101.52 | 0.7954 | 914.2 | 327.5 | |
| 6.12 | -1.00 | 5.01 | -1.00 | -10.54 | 83.17 | -52.50 | 101.78 | 0.7989 | 789.4 | 999999 | |
| 8.28 | -1.00 | 6.78 | -1.00 | -10.23 | 83.19 | -52.47 | 101.40 | 0.7984 | 763.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.80 | -11.36 | 82.65 | -53.02 | 102.73 | 0.8051 | 523.0 | 401.4 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -10.77 | 82.70 | -52.96 | 102.01 | 0.8040 | 358.0 | 338.4 | |
| 0.00 | 1.98 | 0.00 | 1.74 | -12.13 | 80.45 | -55.21 | 103.40 | 0.8275 | 650.0 | 479.5 | |
| 0.00 | 1.08 | 0.00 | 0.95 | -11.89 | 80.42 | -55.24 | 103.10 | 0.8276 | 435.0 | 384.0 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -11.24 | 80.56 | -55.10 | 102.33 | 0.8256 | 240.0 | 348.8 | |
| 1.71 | 3.60 | 1.52 | 3.19 | -12.43 | 80.08 | -55.58 | 103.71 | 0.8314 | 406.7 | 390.7 | |
| 0.00 | 0.90 | 0.00 | 0.82 | -11.94 | 79.17 | -56.49 | 103.02 | 0.8393 | 472.0 | 407.9 | |
| 0.00 | 1.80 | 0.00 | 1.62 | -11.14 | 79.31 | -56.35 | 102.08 | 0.8373 | -616.0 | -501.9 | |
| 0.00 | 1.17 | 0.00 | 1.08 | -12.95 | 78.66 | -57.00 | 104.16 | 0.8450 | 272.0 | 237.5 | |
| 1.08 | 2.25 | 0.98 | 2.03 | -10.89 | 79.16 | -56.50 | 101.77 | 0.8385 | -640.5 | -527.2 | |
| 0.00 | 0.99 | 0.00 | 0.90 | -11.35 | 78.85 | -56.81 | 102.28 | 0.8418 | 375.0 | 242.6 | |
| 3.06 | 147.69 | 2.83 | 140.40 | -12.54 | 78.40 | -57.26 | 103.64 | 0.8470 | 459.2 | -271.4 | |
| 5.67 | -15.00 | 5.27 | -15.00 | -11.20 | 78.09 | -57.57 | 102.03 | 0.8486 | -800.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -13.00 | 77.17 | -58.49 | 104.04 | 0.8583 | -489.0 | -552.0 | |
| 12.15 | -15.00 | 11.51 | -15.00 | -11.37 | 77.45 | -58.21 | 102.16 | 0.8545 | -707.0 | 999999 | |
| 1.71 | -15.00 | 1.64 | -15.00 | -11.64 | 77.12 | -58.54 | 102.45 | 0.8576 | -592.6 | 999999 | |
| 0.72 | -15.00 | 0.70 | -15.00 | -12.62 | 76.65 | -59.01 | 103.53 | 0.8625 | -600.0 | 999999 | |
| 0.27 | -15.00 | 0.26 | -15.00 | -11.51 | 76.99 | -58.67 | 102.29 | 0.8587 | -355.0 | 999999 | |
| 1.89 | -15.00 | 1.85 | -15.00 | -12.30 | 76.47 | -59.20 | 103.15 | 0.8638 | -403.6 | 999999 | |
| 8.46 | -15.00 | 8.24 | -15.00 | -11.90 | 76.49 | -59.17 | 102.69 | 0.8633 | -405.2 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.85 | -12.42 | 74.01 | -61.65 | 103.05 | 0.8842 | -374.0 | -340.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
