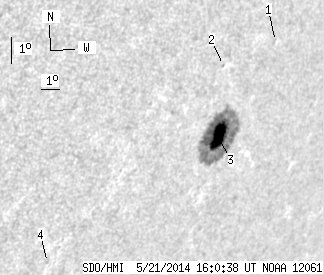

SDO HMI 2014-05-21 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.10 | 140.92 | 24.48 | 132.27 | -24.91 | 190.00 | 55.44 | 241.61 | 0.8511 | 756.1 | 189.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.69 | -21.76 | 191.39 | 56.84 | 245.55 | 0.8561 | -318.0 | -227.6 | |
| 0.00 | 0.81 | 0.00 | 0.73 | -22.61 | 188.87 | 54.31 | 243.97 | 0.8365 | -414.0 | -364.0 | |
| 26.10 | 138.76 | 24.48 | 130.32 | -24.92 | 190.03 | 55.47 | 241.61 | 0.8513 | 900.6 | 198.9 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -29.34 | 183.38 | 48.83 | 234.36 | 0.8096 | -535.0 | -488.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
