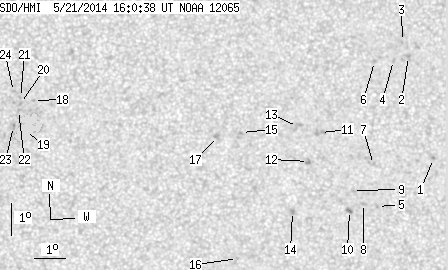

SDO HMI 2014-05-21 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.38 | 94.13 | 8.46 | 49.04 | -18.53 | 139.98 | 5.42 | 196.00 | 0.3099 | 629.5 | 372.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.72 | -19.21 | 149.36 | 14.81 | 218.99 | 0.3852 | 944.0 | 708.2 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -16.00 | 148.29 | 13.73 | 223.06 | 0.3356 | 892.0 | 708.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -15.54 | 148.06 | 13.50 | 223.61 | 0.3276 | 770.0 | 666.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -16.13 | 147.81 | 13.25 | 221.81 | 0.3318 | 619.0 | 555.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -20.76 | 147.64 | 13.08 | 213.19 | 0.3883 | 640.0 | 524.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -16.17 | 147.19 | 12.64 | 220.42 | 0.3255 | 764.0 | 616.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -19.41 | 147.39 | 12.84 | 214.82 | 0.3686 | 758.0 | 588.3 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -20.66 | 147.16 | 12.61 | 212.39 | 0.3829 | 709.0 | 604.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -20.25 | 146.77 | 12.21 | 212.20 | 0.3739 | 530.0 | 380.6 | |
| 0.00 | 3.06 | 0.00 | 1.64 | -20.89 | 146.72 | 12.16 | 211.15 | 0.3821 | 858.0 | 769.2 | |
| 0.00 | 5.58 | 0.00 | 2.94 | -18.41 | 145.58 | 11.03 | 212.56 | 0.3388 | 698.0 | 694.4 | |
| 0.00 | 2.79 | 0.00 | 1.47 | -19.33 | 145.25 | 10.70 | 210.31 | 0.3486 | 905.0 | 836.2 | |
| 0.00 | 5.13 | 0.00 | 2.69 | -18.22 | 144.83 | 10.27 | 211.07 | 0.3296 | 650.0 | 632.7 | |
| 0.00 | 2.61 | 0.00 | 1.39 | -20.93 | 144.83 | 10.28 | 207.07 | 0.3678 | 909.0 | 756.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -18.42 | 143.02 | 8.47 | 206.17 | 0.3181 | 649.0 | 589.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -22.45 | 143.11 | 8.56 | 201.39 | 0.3786 | 826.0 | 634.0 | |
| 0.00 | 4.05 | 0.00 | 2.11 | -18.55 | 142.25 | 7.70 | 203.92 | 0.3146 | 862.0 | 707.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -17.42 | 136.33 | 1.78 | 186.32 | 0.2700 | -889.0 | -749.6 | |
| 16.38 | 47.69 | 8.46 | 24.64 | -18.40 | 136.09 | 1.53 | 185.11 | 0.2859 | 1119.7 | 168.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -17.52 | 135.92 | 1.36 | 184.83 | 0.2709 | -726.0 | -553.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -17.33 | 135.92 | 1.36 | 184.89 | 0.2677 | -798.0 | -666.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.74 | 135.86 | 1.30 | 184.54 | 0.2745 | -459.0 | -330.2 | |
| 0.00 | 2.34 | 0.00 | 1.21 | -18.24 | 135.70 | 1.15 | 183.87 | 0.2828 | 884.0 | 596.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.14 | 135.70 | 1.14 | 184.15 | 0.2642 | -664.0 | -539.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
