SDO HMI 2014-05-21 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.87 | 222.63 | 51.77 | 196.97 | -11.40 | 78.99 | -55.57 | 102.48 | 0.8294 | -188.7 | -82.5 | |
|
previous
or next observation for the same group /

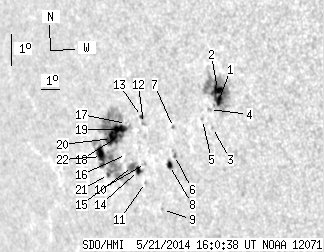

back to the solar disc SDO HMI 2014-05-21 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.68 | 58.76 | 3.74 | 46.89 | -10.48 | 83.24 | -51.32 | 101.85 | 0.7866 | 838.6 | 335.0 | |
| 6.57 | -1.00 | 5.24 | -1.00 | -10.14 | 83.26 | -51.29 | 101.43 | 0.7859 | 853.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.87 | -11.30 | 82.73 | -51.82 | 102.82 | 0.7928 | 470.0 | 439.5 | |
| 0.00 | 1.71 | 0.00 | 1.38 | -10.74 | 82.72 | -51.83 | 102.12 | 0.7923 | 446.0 | 357.7 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -11.04 | 82.29 | -52.26 | 102.44 | 0.7970 | 392.0 | 362.5 | |
| 0.36 | 2.34 | 0.31 | 1.99 | -12.10 | 80.54 | -54.01 | 103.52 | 0.8159 | 532.0 | 463.8 | |
| 0.00 | 1.26 | 0.00 | 1.07 | -11.24 | 80.74 | -53.82 | 102.49 | 0.8130 | 454.0 | 449.1 | |
| 2.97 | 5.04 | 2.55 | 4.33 | -12.40 | 80.19 | -54.37 | 103.84 | 0.8197 | 390.2 | 210.4 | |
| 0.00 | 0.99 | 0.00 | 0.87 | -13.75 | 79.36 | -55.20 | 105.35 | 0.8292 | 380.0 | 293.3 | |
| 0.00 | 1.17 | 0.00 | 1.04 | -12.31 | 78.91 | -55.65 | 103.56 | 0.8319 | 266.0 | 335.8 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -12.89 | 78.71 | -55.84 | 104.23 | 0.8343 | 275.0 | 249.1 | |
| 0.00 | 1.71 | 0.00 | 1.50 | -11.08 | 79.17 | -55.38 | 102.11 | 0.8281 | -592.0 | -476.3 | |
| 0.99 | 1.89 | 0.87 | 1.66 | -10.86 | 79.13 | -55.43 | 101.84 | 0.8284 | -570.8 | -500.9 | |
| 3.42 | 143.26 | 3.07 | 132.39 | -12.51 | 78.45 | -56.11 | 103.74 | 0.8364 | 347.3 | -284.8 | |
| 3.06 | -14.00 | 2.77 | -14.00 | -12.38 | 78.16 | -56.40 | 103.55 | 0.8389 | -419.7 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -12.00 | 77.94 | -56.61 | 103.08 | 0.8406 | -567.0 | -541.3 | |
| 0.00 | 0.81 | 0.00 | 0.73 | -11.05 | 78.24 | -56.32 | 101.98 | 0.8370 | -550.0 | -538.3 | |
| 1.71 | -14.00 | 1.56 | -14.00 | -11.41 | 77.73 | -56.82 | 102.35 | 0.8420 | -784.7 | 999999 | |
| 10.26 | -14.00 | 9.35 | -14.00 | -11.22 | 77.73 | -56.82 | 102.13 | 0.8418 | -823.1 | 999999 | |
| 11.16 | -14.00 | 10.32 | -14.00 | -11.49 | 77.25 | -57.31 | 102.39 | 0.8465 | -683.4 | 999999 | |
| 0.99 | -14.00 | 0.93 | -14.00 | -12.59 | 76.70 | -57.86 | 103.63 | 0.8524 | -601.7 | 999999 | |
| 11.70 | -14.00 | 11.06 | -14.00 | -12.02 | 76.49 | -58.07 | 102.94 | 0.8538 | -451.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
