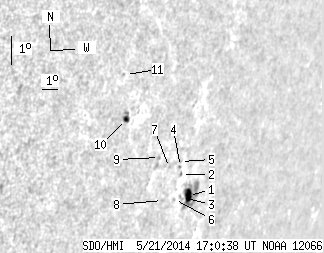

SDO HMI 2014-05-21 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.99 | 42.57 | 11.31 | 48.51 | -18.22 | 197.36 | 63.36 | 250.65 | 0.9012 | 310.4 | 35.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.74 | 26.19 | 9.11 | 31.00 | -18.62 | 198.36 | 64.36 | 250.33 | 0.9090 | 485.6 | -54.2 | |
| 0.00 | 1.53 | 0.00 | 1.74 | -17.98 | 197.41 | 63.41 | 250.92 | 0.9018 | 315.0 | 366.1 | |
| 0.00 | 2.34 | 0.00 | 2.71 | -18.70 | 197.90 | 63.90 | 250.19 | 0.9059 | 654.0 | 479.3 | |
| 0.00 | 0.99 | 0.00 | 1.11 | -17.73 | 197.18 | 63.18 | 251.16 | 0.8999 | 643.0 | 549.4 | |
| 0.00 | 0.90 | 0.00 | 1.01 | -17.58 | 197.08 | 63.08 | 251.32 | 0.8991 | 435.0 | 430.3 | |
| 0.00 | 1.17 | 0.00 | 1.34 | -18.78 | 197.44 | 63.44 | 250.04 | 0.9027 | 508.0 | 413.3 | |
| 0.00 | 1.08 | 0.00 | 1.19 | -17.79 | 196.44 | 62.44 | 251.01 | 0.8946 | 176.0 | 157.4 | |
| 0.00 | 0.90 | 0.00 | 1.00 | -18.83 | 196.62 | 62.62 | 249.87 | 0.8969 | 172.0 | 132.7 | |
| 0.00 | 1.17 | 0.00 | 1.25 | -17.49 | 195.58 | 61.58 | 251.22 | 0.8878 | 156.0 | 186.5 | |
| 2.25 | 5.85 | 2.20 | 5.73 | -16.37 | 192.85 | 58.85 | 252.12 | 0.8648 | -684.1 | -505.1 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -14.97 | 192.15 | 58.15 | 253.63 | 0.8573 | 327.0 | 427.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
