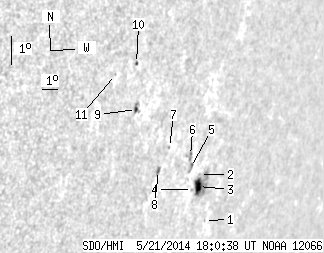

SDO HMI 2014-05-21 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.17 | 44.91 | 11.80 | 51.79 | -18.10 | 197.16 | 63.71 | 250.83 | 0.9034 | 294.8 | 10.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.34 | -19.69 | 199.71 | 66.26 | 249.39 | 0.9224 | -268.0 | -251.0 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -18.26 | 198.23 | 64.78 | 250.78 | 0.9116 | 342.0 | 343.7 | |
| 7.92 | 23.76 | 9.53 | 28.79 | -18.64 | 198.42 | 64.97 | 250.39 | 0.9132 | 479.1 | -124.7 | |
| 0.00 | 1.35 | 0.00 | 1.60 | -18.74 | 198.04 | 64.60 | 250.23 | 0.9107 | 513.0 | 464.9 | |
| 0.00 | 3.51 | 0.00 | 4.07 | -18.06 | 197.42 | 63.97 | 250.90 | 0.9058 | 529.0 | 457.5 | |
| 0.00 | 4.95 | 0.00 | 5.67 | -17.69 | 197.17 | 63.72 | 251.28 | 0.9038 | 572.0 | 419.6 | |
| 0.00 | 0.54 | 0.00 | 0.59 | -17.48 | 195.56 | 62.11 | 251.31 | 0.8918 | 311.0 | 298.8 | |
| 0.63 | 3.33 | 0.68 | 3.60 | -18.22 | 195.26 | 61.81 | 250.44 | 0.8903 | -354.4 | -248.6 | |
| 1.08 | 4.59 | 1.07 | 4.56 | -16.35 | 192.79 | 59.34 | 252.20 | 0.8689 | -698.9 | -513.0 | |
| 0.54 | 1.44 | 0.52 | 1.40 | -14.92 | 192.12 | 58.67 | 253.75 | 0.8617 | 403.8 | 348.6 | |
| 0.00 | 0.90 | 0.00 | 0.85 | -15.30 | 191.02 | 57.58 | 253.17 | 0.8527 | -244.0 | -202.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
