SDO HMI 2014-05-21 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.12 | 226.41 | 51.62 | 191.85 | -11.31 | 79.05 | -53.85 | 102.58 | 0.8124 | -206.8 | -29.9 | |
|
previous
or next observation for the same group /

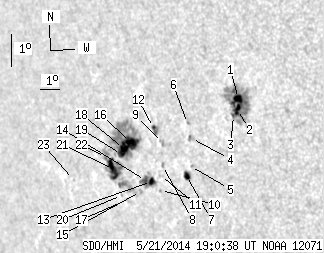

back to the solar disc SDO HMI 2014-05-21 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.85 | 64.61 | 4.49 | 49.61 | -10.03 | 83.47 | -49.42 | 101.53 | 0.7656 | 940.6 | 410.6 | |
| 4.32 | -1.00 | 3.32 | -1.00 | -10.37 | 83.35 | -49.54 | 101.95 | 0.7673 | 893.8 | 999999 | |
| 1.17 | -1.00 | 0.90 | -1.00 | -10.54 | 83.12 | -49.77 | 102.15 | 0.7700 | 601.8 | 999999 | |
| 0.00 | 3.51 | 0.00 | 2.85 | -11.20 | 80.90 | -52.00 | 102.67 | 0.7945 | 630.0 | 446.0 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -12.05 | 80.62 | -52.28 | 103.71 | 0.7984 | 681.0 | 667.8 | |
| 0.00 | 0.63 | 0.00 | 0.51 | -10.73 | 80.81 | -52.08 | 102.08 | 0.7948 | 541.0 | 470.3 | |
| 3.78 | 5.40 | 3.12 | 4.45 | -12.32 | 80.33 | -52.56 | 104.00 | 0.8016 | 442.7 | 236.3 | |
| 0.00 | 1.89 | 0.00 | 1.60 | -11.98 | 79.18 | -53.71 | 103.42 | 0.8128 | 493.0 | 381.4 | |
| 0.00 | 2.97 | 0.00 | 2.50 | -11.28 | 79.38 | -53.51 | 102.58 | 0.8100 | -696.0 | -489.6 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -12.75 | 78.84 | -54.05 | 104.31 | 0.8170 | 365.0 | 328.8 | |
| 0.00 | 0.99 | 0.00 | 0.84 | -12.29 | 78.99 | -53.90 | 103.77 | 0.8151 | 487.0 | 440.8 | |
| 1.17 | 5.40 | 0.99 | 4.56 | -10.81 | 79.04 | -53.85 | 101.96 | 0.8130 | -696.8 | -580.9 | |
| 3.60 | 15.03 | 3.10 | 13.01 | -12.46 | 78.45 | -54.44 | 103.90 | 0.8205 | 482.6 | -181.6 | |
| 3.15 | -13.00 | 2.73 | -13.00 | -12.42 | 78.14 | -54.75 | 103.81 | 0.8234 | -490.7 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.89 | -12.75 | 77.76 | -55.13 | 104.16 | 0.8274 | -500.0 | -371.6 | |
| 12.69 | 120.58 | 11.10 | 107.14 | -11.23 | 77.69 | -55.21 | 102.32 | 0.8266 | -855.1 | -249.5 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -12.98 | 76.97 | -55.93 | 104.33 | 0.8352 | -484.0 | -485.7 | |
| 8.01 | -16.00 | 7.09 | -16.00 | -11.41 | 77.25 | -55.64 | 102.48 | 0.8309 | -817.3 | 999999 | |
| 2.70 | -16.00 | 2.40 | -16.00 | -11.59 | 77.09 | -55.81 | 102.68 | 0.8327 | -677.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -12.85 | 76.68 | -56.22 | 104.13 | 0.8377 | -323.0 | -320.5 | |
| 13.32 | -16.00 | 12.05 | -16.00 | -12.03 | 76.50 | -56.40 | 103.15 | 0.8386 | -508.2 | 999999 | |
| 0.36 | -16.00 | 0.33 | -16.00 | -11.65 | 76.17 | -56.73 | 102.66 | 0.8413 | 396.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.87 | -12.28 | 74.08 | -58.81 | 103.17 | 0.8605 | -423.0 | -319.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
