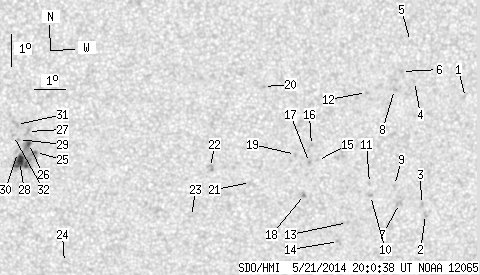

SDO HMI 2014-05-21 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.98 | 89.73 | 5.69 | 47.08 | -18.42 | 140.76 | 8.42 | 204.27 | 0.3266 | 485.6 | 350.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-21 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.30 | 150.47 | 18.13 | 230.06 | 0.3911 | 526.0 | 461.9 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -20.01 | 149.51 | 17.17 | 221.64 | 0.4192 | 705.0 | 581.5 | |
| 0.00 | 2.43 | 0.00 | 1.32 | -19.69 | 149.34 | 17.00 | 221.91 | 0.4138 | 805.0 | 644.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -15.82 | 148.74 | 16.40 | 228.36 | 0.3650 | 714.0 | 523.3 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -14.57 | 148.51 | 16.17 | 230.73 | 0.3496 | -6.0 | 2.3 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -15.51 | 148.28 | 15.95 | 228.26 | 0.3563 | 739.0 | 595.0 | |
| 0.00 | 3.69 | 0.00 | 2.00 | -19.67 | 148.59 | 16.26 | 220.73 | 0.4057 | 790.0 | 649.2 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -16.07 | 148.10 | 15.76 | 226.73 | 0.3601 | 951.0 | 806.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.10 | 148.37 | 16.03 | 221.35 | 0.3967 | 819.0 | 629.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -19.42 | 147.60 | 15.26 | 219.43 | 0.3925 | 846.0 | 770.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.04 | 147.53 | 15.19 | 219.97 | 0.3873 | 822.0 | 628.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -16.17 | 147.19 | 14.85 | 224.87 | 0.3505 | 606.0 | 508.5 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -20.29 | 146.91 | 14.58 | 216.75 | 0.3962 | 769.0 | 636.5 | |
| 0.00 | 2.25 | 0.00 | 1.22 | -20.90 | 146.67 | 14.33 | 215.34 | 0.4016 | 907.0 | 678.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -18.32 | 145.75 | 13.41 | 217.86 | 0.3604 | 840.0 | 555.4 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -17.85 | 145.52 | 13.18 | 218.25 | 0.3521 | 830.0 | 647.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -18.39 | 145.49 | 13.16 | 217.22 | 0.3586 | 1085.0 | 866.7 | |
| 0.00 | 2.34 | 0.00 | 1.25 | -19.40 | 145.41 | 13.07 | 215.30 | 0.3707 | 942.0 | 792.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.14 | 145.02 | 12.68 | 216.67 | 0.3507 | 875.0 | 748.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -16.00 | 143.84 | 11.50 | 218.14 | 0.3117 | 742.0 | 600.2 | |
| 0.00 | 3.06 | 0.00 | 1.62 | -19.03 | 143.61 | 11.27 | 212.06 | 0.3495 | -1.0 | 0.6 | |
| 0.00 | 3.69 | 0.00 | 1.94 | -18.56 | 142.27 | 9.93 | 209.69 | 0.3317 | 655.0 | 698.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -20.12 | 141.74 | 9.41 | 206.13 | 0.3500 | 6.0 | -4.1 | |
| 0.00 | 2.61 | 0.00 | 1.38 | -21.61 | 137.66 | 5.32 | 194.34 | 0.3495 | 17.0 | 8.8 | |
| 0.63 | 37.89 | 0.33 | 19.61 | -18.10 | 136.62 | 4.28 | 194.27 | 0.2890 | -585.6 | 343.6 | |
| 1.62 | -25.00 | 0.84 | -25.00 | -17.82 | 136.39 | 4.05 | 193.78 | 0.2834 | -628.3 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.53 | -17.44 | 136.35 | 4.01 | 193.99 | 0.2771 | -870.0 | -745.2 | |
| 8.73 | -25.00 | 4.52 | -25.00 | -18.39 | 136.11 | 3.77 | 192.42 | 0.2917 | 1182.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.69 | 136.06 | 3.73 | 192.83 | 0.2801 | -499.0 | -401.6 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -18.10 | 136.04 | 3.70 | 192.42 | 0.2868 | 279.0 | 293.0 | |
| 0.00 | 2.97 | 0.00 | 1.53 | -17.22 | 135.99 | 3.65 | 192.98 | 0.2721 | -866.0 | -701.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -17.57 | 135.90 | 3.56 | 192.39 | 0.2775 | -735.0 | -586.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
