SDO HMI 2014-05-21 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.01 | 41.76 | 10.09 | 51.73 | -18.14 | 197.42 | 65.63 | 250.99 | 0.9168 | 261.6 | 44.4 | |
|
previous
or next observation for the same group /

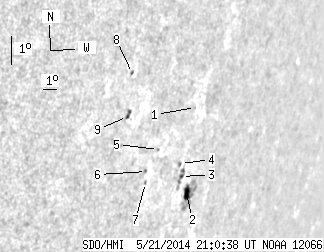

back to the solar disc SDO HMI 2014-05-21 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.66 | -15.96 | 197.32 | 65.53 | 253.36 | 0.9151 | 226.0 | 254.0 | |
| 6.66 | 23.67 | 8.58 | 30.72 | -18.62 | 198.49 | 66.70 | 250.59 | 0.9245 | 406.4 | -70.7 | |
| 0.54 | 7.65 | 0.67 | 9.53 | -18.13 | 197.71 | 65.93 | 251.04 | 0.9192 | 570.8 | 472.2 | |
| 0.00 | 1.08 | 0.00 | 1.33 | -17.73 | 197.34 | 65.56 | 251.44 | 0.9164 | 524.0 | 469.7 | |
| 0.00 | 0.99 | 0.00 | 1.13 | -17.34 | 195.43 | 63.65 | 251.65 | 0.9030 | 380.0 | 327.6 | |
| 0.00 | 1.26 | 0.00 | 1.42 | -18.05 | 195.02 | 63.24 | 250.82 | 0.9007 | -383.0 | -343.4 | |
| 0.00 | 1.17 | 0.00 | 1.33 | -18.39 | 195.18 | 63.40 | 250.45 | 0.9021 | -256.0 | -246.5 | |
| 0.00 | 1.44 | 0.00 | 1.48 | -15.03 | 192.38 | 60.60 | 253.87 | 0.8778 | 383.0 | 295.6 | |
| 0.81 | 3.96 | 0.84 | 4.13 | -16.37 | 192.73 | 60.95 | 252.40 | 0.8819 | -636.2 | -471.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
