SDO HMI 2014-05-22 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 59.67 | 0.33 | 32.08 | -18.34 | 144.88 | 15.32 | 220.06 | 0.3849 | 627.0 | 414.3 | |
|
previous
or next observation for the same group /

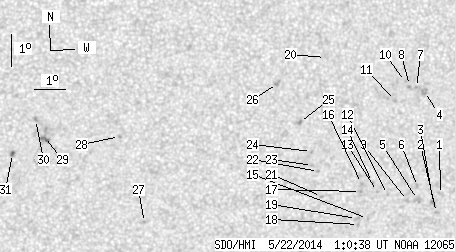

back to the solar disc SDO HMI 2014-05-22 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 1.34 | -19.42 | 149.56 | 19.99 | 226.77 | 0.4444 | 683.0 | 554.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -20.00 | 149.50 | 19.93 | 225.69 | 0.4495 | 768.0 | 614.2 | |
| 0.00 | 2.88 | 0.00 | 1.59 | -19.71 | 149.36 | 19.79 | 225.99 | 0.4450 | 852.0 | 692.3 | |
| 0.00 | 4.32 | 0.00 | 2.34 | -16.18 | 148.65 | 19.08 | 231.63 | 0.4022 | 746.0 | 683.5 | |
| 0.00 | 4.77 | 0.00 | 2.63 | -19.59 | 148.80 | 19.23 | 225.42 | 0.4374 | 755.0 | 634.2 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -19.17 | 148.74 | 19.18 | 226.07 | 0.4326 | 860.0 | 650.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -16.05 | 148.37 | 18.81 | 231.50 | 0.3975 | 957.0 | 738.9 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -15.99 | 148.13 | 18.57 | 231.28 | 0.3940 | 757.0 | 779.8 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -19.62 | 148.46 | 18.89 | 224.87 | 0.4340 | 743.0 | 623.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -15.87 | 147.99 | 18.42 | 231.33 | 0.3910 | 855.0 | 761.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -16.47 | 147.71 | 18.15 | 229.69 | 0.3933 | 628.0 | 548.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.44 | 147.76 | 18.19 | 224.16 | 0.4243 | 837.0 | 670.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.34 | 147.41 | 17.84 | 223.79 | 0.4195 | 850.0 | 691.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -19.06 | 147.21 | 17.64 | 223.99 | 0.4142 | 833.0 | 674.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -20.21 | 147.17 | 17.60 | 221.94 | 0.4264 | 636.0 | 517.6 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -19.09 | 146.84 | 17.27 | 223.35 | 0.4105 | 771.0 | 680.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -19.35 | 146.83 | 17.27 | 222.89 | 0.4132 | 929.0 | 734.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -20.40 | 146.88 | 17.32 | 221.17 | 0.4256 | 648.0 | 618.7 | |
| 0.00 | 2.52 | 0.00 | 1.38 | -20.21 | 146.80 | 17.23 | 221.35 | 0.4225 | 627.0 | 492.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -15.14 | 145.29 | 15.72 | 228.62 | 0.3502 | -1.0 | -1.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.52 | 145.54 | 15.98 | 220.46 | 0.4014 | 854.0 | 758.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -18.72 | 145.36 | 15.80 | 221.55 | 0.3903 | 835.0 | 696.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -18.54 | 145.15 | 15.58 | 221.51 | 0.3858 | 768.0 | 568.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -18.09 | 145.07 | 15.51 | 222.20 | 0.3799 | 786.0 | 723.6 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -17.18 | 144.60 | 15.03 | 223.09 | 0.3643 | 928.0 | 804.8 | |
| 0.00 | 2.97 | 0.00 | 1.56 | -15.96 | 143.79 | 14.22 | 224.04 | 0.3412 | 942.0 | 756.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -20.38 | 139.74 | 10.18 | 207.53 | 0.3599 | 720.0 | 429.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -17.65 | 138.77 | 9.21 | 209.25 | 0.3133 | -731.0 | -597.8 | |
| 0.00 | 7.92 | 0.00 | 4.11 | -17.66 | 136.36 | 6.79 | 202.50 | 0.2958 | -706.0 | -572.8 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -17.13 | 136.05 | 6.49 | 202.31 | 0.2857 | -830.0 | -763.3 | |
| 0.63 | 2.07 | 0.33 | 1.07 | -18.20 | 135.35 | 5.79 | 198.81 | 0.2983 | 1010.7 | 857.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
