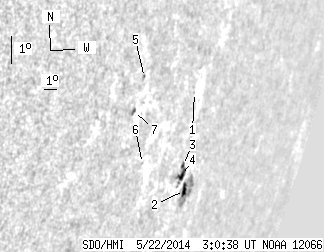

SDO HMI 2014-05-22 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.81 | 40.97 | 14.49 | 59.53 | -18.24 | 197.98 | 69.52 | 251.25 | 0.9406 | 295.3 | 18.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.37 | -15.60 | 197.16 | 68.70 | 254.00 | 0.9351 | 365.0 | 344.7 | |
| 4.68 | 24.04 | 7.03 | 36.44 | -18.66 | 198.79 | 70.32 | 250.87 | 0.9457 | 281.2 | -67.6 | |
| 0.99 | 11.53 | 1.43 | 16.71 | -17.89 | 197.90 | 69.43 | 251.62 | 0.9404 | 461.0 | 398.2 | |
| 4.14 | -3.00 | 6.03 | -3.00 | -18.20 | 198.08 | 69.62 | 251.30 | 0.9416 | 486.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.99 | -15.25 | 192.93 | 64.46 | 254.02 | 0.9073 | 403.0 | 211.5 | |
| 0.00 | 0.45 | 0.00 | 0.56 | -17.92 | 194.51 | 66.05 | 251.26 | 0.9199 | -397.0 | -427.2 | |
| 0.00 | 2.97 | 0.00 | 3.46 | -16.32 | 192.75 | 64.29 | 252.82 | 0.9068 | -483.0 | -337.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
