SDO HMI 2014-05-22 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.42 | 41.97 | 20.28 | 62.94 | -18.31 | 198.09 | 70.18 | 251.22 | 0.9444 | 305.5 | -38.4 | |
|
previous
or next observation for the same group /

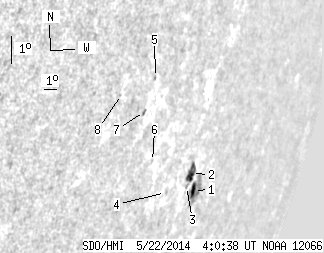

back to the solar disc SDO HMI 2014-05-22 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.95 | 23.78 | 7.65 | 37.09 | -18.65 | 198.81 | 70.90 | 250.93 | 0.9487 | 233.9 | -117.7 | |
| 8.47 | 11.62 | 12.63 | 17.32 | -18.12 | 198.12 | 70.21 | 251.43 | 0.9448 | 512.0 | 269.3 | |
| 0.00 | 1.89 | 0.00 | 2.82 | -18.54 | 198.03 | 70.12 | 250.98 | 0.9445 | 458.0 | 431.7 | |
| 0.00 | 0.81 | 0.00 | 1.12 | -18.78 | 196.32 | 68.41 | 250.57 | 0.9350 | 284.0 | 217.3 | |
| 0.00 | 0.90 | 0.00 | 1.08 | -15.23 | 192.97 | 65.05 | 254.09 | 0.9114 | 256.0 | 291.9 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -17.84 | 194.47 | 66.55 | 251.40 | 0.9231 | -501.0 | -413.0 | |
| 0.00 | 2.07 | 0.00 | 2.47 | -16.30 | 192.79 | 64.88 | 252.90 | 0.9109 | -443.0 | -351.9 | |
| 0.00 | 0.63 | 0.00 | 0.70 | -15.82 | 190.84 | 62.92 | 253.22 | 0.8966 | -281.0 | -294.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
