SDO HMI 2014-05-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 48.61 | 0.00 | 26.59 | -18.32 | 145.27 | 18.45 | 225.29 | 0.4191 | 638.3 | 352.0 | |
|
previous
or next observation for the same group /

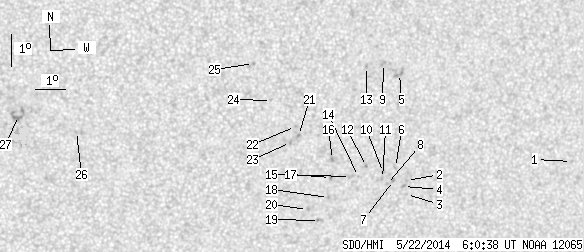

back to the solar disc SDO HMI 2014-05-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.48 | -18.91 | 155.27 | 28.46 | 236.61 | 0.5419 | -667.0 | -584.6 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -19.58 | 149.50 | 22.68 | 229.80 | 0.4775 | 724.0 | 606.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -20.03 | 149.56 | 22.75 | 229.12 | 0.4824 | 554.0 | 453.8 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -19.77 | 149.42 | 22.60 | 229.39 | 0.4784 | 724.0 | 580.0 | |
| 0.00 | 4.95 | 0.00 | 2.73 | -16.20 | 148.81 | 21.99 | 235.16 | 0.4399 | 522.0 | 630.0 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -19.17 | 149.06 | 22.24 | 229.99 | 0.4686 | 746.0 | 531.7 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -19.59 | 149.04 | 22.23 | 229.26 | 0.4723 | 823.0 | 742.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -19.72 | 148.82 | 22.00 | 228.77 | 0.4708 | 666.0 | 528.8 | |
| 0.00 | 2.43 | 0.00 | 1.33 | -15.90 | 148.23 | 21.41 | 235.10 | 0.4299 | 792.0 | 766.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -19.33 | 148.66 | 21.84 | 229.23 | 0.4654 | 865.0 | 694.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.53 | 148.65 | 21.83 | 228.89 | 0.4671 | 749.0 | 559.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -19.15 | 148.05 | 21.23 | 228.79 | 0.4565 | 924.0 | 771.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -16.00 | 147.67 | 20.85 | 234.22 | 0.4234 | 938.0 | 714.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.47 | 147.82 | 21.00 | 227.94 | 0.4569 | 767.0 | 612.9 | |
| 0.00 | 2.43 | 0.00 | 1.35 | -19.47 | 147.54 | 20.72 | 227.58 | 0.4537 | 683.0 | 590.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -18.94 | 146.85 | 20.03 | 227.61 | 0.4405 | 953.0 | 763.5 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -19.51 | 146.86 | 20.04 | 226.61 | 0.4463 | 854.0 | 761.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -20.15 | 146.87 | 20.05 | 225.54 | 0.4529 | 886.0 | 734.9 | |
| 0.00 | 2.43 | 0.00 | 1.35 | -20.89 | 146.66 | 19.84 | 224.03 | 0.4582 | 803.0 | 644.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -20.54 | 146.20 | 19.38 | 223.96 | 0.4495 | 637.0 | 532.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.19 | 145.61 | 18.79 | 227.24 | 0.4186 | 876.0 | 745.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -17.90 | 145.48 | 18.66 | 227.57 | 0.4142 | 839.0 | 665.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -18.41 | 145.37 | 18.55 | 226.47 | 0.4180 | 813.0 | 714.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.09 | 144.59 | 17.77 | 227.81 | 0.3954 | 831.0 | 692.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -15.94 | 143.89 | 17.07 | 229.06 | 0.3752 | 753.0 | 640.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -18.11 | 138.25 | 11.43 | 213.87 | 0.3396 | -483.0 | -516.1 | |
| 0.00 | 10.27 | 0.00 | 5.36 | -17.61 | 136.34 | 9.52 | 210.09 | 0.3160 | -338.0 | -604.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
