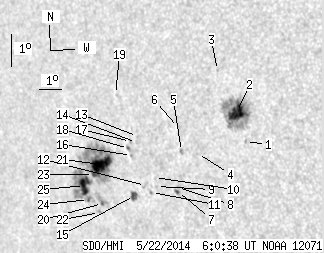

SDO HMI 2014-05-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.18 | 236.86 | 43.46 | 176.27 | -11.12 | 79.23 | -47.58 | 103.31 | 0.7456 | -199.3 | -35.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.80 | -10.76 | 84.02 | -42.80 | 103.75 | 0.6895 | 790.0 | 678.5 | |
| 16.30 | 69.26 | 11.13 | 47.31 | -9.86 | 83.79 | -43.02 | 102.41 | 0.6906 | 957.7 | 408.4 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -8.56 | 83.19 | -43.63 | 100.43 | 0.6961 | -527.0 | -446.0 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -11.08 | 81.89 | -44.93 | 103.76 | 0.7158 | 263.0 | 325.2 | |
| 0.00 | 2.25 | 0.00 | 1.61 | -11.00 | 81.20 | -45.62 | 103.51 | 0.7238 | 766.0 | 522.2 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -10.26 | 81.21 | -45.60 | 102.50 | 0.7225 | 423.0 | 390.7 | |
| 0.99 | 2.43 | 0.72 | 1.76 | -12.23 | 80.76 | -46.06 | 105.10 | 0.7312 | 660.8 | 548.8 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -12.10 | 80.79 | -46.03 | 104.93 | 0.7306 | 792.0 | 549.9 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -12.05 | 79.85 | -46.97 | 104.67 | 0.7413 | 625.0 | 595.1 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -11.77 | 79.82 | -47.00 | 104.29 | 0.7411 | 537.0 | 485.5 | |
| 0.00 | 1.44 | 0.00 | 1.07 | -12.23 | 79.58 | -47.24 | 104.86 | 0.7446 | 333.0 | 360.9 | |
| 0.00 | 2.43 | 0.00 | 1.80 | -12.01 | 79.36 | -47.46 | 104.52 | 0.7468 | 596.0 | 516.6 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -10.49 | 79.32 | -47.50 | 102.49 | 0.7448 | -715.0 | -642.5 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -10.68 | 79.24 | -47.58 | 102.72 | 0.7460 | -620.0 | -528.8 | |
| 3.87 | 6.21 | 2.91 | 4.67 | -12.30 | 78.77 | -48.04 | 104.80 | 0.7538 | 547.6 | 332.6 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -11.07 | 78.92 | -47.90 | 103.19 | 0.7502 | -526.0 | -538.1 | |
| 0.00 | 1.71 | 0.00 | 1.27 | -10.64 | 78.97 | -47.85 | 102.63 | 0.7490 | -671.0 | -517.4 | |
| 0.54 | 2.16 | 0.40 | 1.61 | -10.85 | 78.83 | -47.99 | 102.89 | 0.7509 | -657.8 | -527.7 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -9.18 | 78.56 | -48.26 | 100.64 | 0.7518 | -474.0 | -461.0 | |
| 0.90 | 8.56 | 0.70 | 6.63 | -12.51 | 77.20 | -49.62 | 104.78 | 0.7713 | -698.4 | -482.0 | |
| 20.45 | 87.10 | 15.72 | 67.17 | -11.31 | 77.45 | -49.36 | 103.27 | 0.7668 | -981.0 | -339.6 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -12.79 | 76.98 | -49.84 | 105.09 | 0.7741 | -495.0 | -453.1 | |
| 1.26 | -21.00 | 0.98 | -21.00 | -11.61 | 77.00 | -49.82 | 103.58 | 0.7722 | -667.8 | 999999 | |
| 0.90 | 42.06 | 0.71 | 33.14 | -12.37 | 76.56 | -50.26 | 104.49 | 0.7780 | -705.9 | -45.3 | |
| 12.97 | -24.00 | 10.19 | -24.00 | -11.94 | 76.48 | -50.34 | 103.92 | 0.7782 | -774.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
