SDO HMI 2014-05-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 42.12 | 0.00 | 23.21 | -18.29 | 145.42 | 19.69 | 227.38 | 0.4325 | 639.2 | 423.2 | |
|
previous
or next observation for the same group /

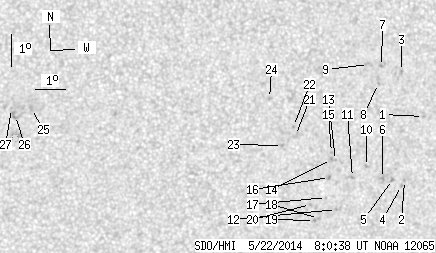

back to the solar disc SDO HMI 2014-05-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.71 | -17.55 | 149.89 | 24.17 | 234.97 | 0.4786 | 704.0 | 560.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -19.59 | 149.53 | 23.80 | 231.04 | 0.4910 | 720.0 | 479.1 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -16.15 | 148.94 | 23.22 | 236.60 | 0.4555 | 764.0 | 544.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -19.75 | 149.45 | 23.72 | 230.68 | 0.4914 | 693.0 | 615.9 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -19.56 | 149.10 | 23.38 | 230.61 | 0.4857 | 875.0 | 706.1 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -19.53 | 148.75 | 23.02 | 230.26 | 0.4813 | 827.0 | 651.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -16.00 | 148.24 | 22.51 | 236.13 | 0.4451 | 952.0 | 828.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -16.53 | 148.20 | 22.48 | 235.06 | 0.4489 | 694.0 | 570.8 | |
| 0.00 | 3.24 | 0.00 | 1.79 | -15.94 | 147.79 | 22.06 | 235.74 | 0.4388 | 740.0 | 679.8 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -19.16 | 148.13 | 22.41 | 230.20 | 0.4706 | 924.0 | 721.5 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -19.51 | 147.70 | 21.97 | 229.06 | 0.4687 | 892.0 | 758.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.54 | 147.29 | 21.56 | 226.83 | 0.4738 | 800.0 | 643.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.98 | 147.03 | 21.31 | 229.18 | 0.4560 | 869.0 | 734.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -18.95 | 146.89 | 21.17 | 229.06 | 0.4540 | 914.0 | 814.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.72 | 146.86 | 21.14 | 229.41 | 0.4516 | 884.0 | 754.5 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -19.52 | 146.90 | 21.18 | 228.07 | 0.4596 | 993.0 | 847.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.16 | 146.89 | 21.16 | 226.96 | 0.4656 | 750.0 | 552.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -20.83 | 146.70 | 20.98 | 225.61 | 0.4702 | 651.0 | 506.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -20.90 | 146.57 | 20.85 | 225.34 | 0.4694 | 756.0 | 636.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -20.39 | 146.36 | 20.64 | 225.90 | 0.4619 | 753.0 | 641.6 | |
| 0.00 | 3.15 | 0.00 | 1.73 | -18.20 | 145.57 | 19.84 | 228.67 | 0.4312 | 637.0 | 601.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -17.91 | 145.47 | 19.74 | 229.06 | 0.4273 | 802.0 | 728.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -18.52 | 145.16 | 19.44 | 227.53 | 0.4296 | 864.0 | 733.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -17.04 | 144.56 | 18.84 | 229.47 | 0.4079 | 707.0 | 600.1 | |
| 0.00 | 2.79 | 0.00 | 1.46 | -17.41 | 136.76 | 11.03 | 214.17 | 0.3266 | -836.0 | -723.5 | |
| 0.00 | 4.86 | 0.00 | 2.55 | -17.63 | 136.25 | 10.53 | 212.56 | 0.3250 | -268.0 | -566.1 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -17.41 | 136.11 | 10.38 | 212.59 | 0.3207 | -802.0 | -617.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
