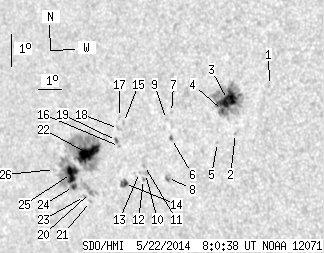

SDO HMI 2014-05-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.04 | 253.71 | 46.56 | 185.19 | -11.17 | 79.15 | -46.58 | 103.56 | 0.7342 | -138.9 | -31.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.47 | -9.42 | 85.62 | -40.11 | 102.38 | 0.6529 | 344.0 | 242.1 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -10.86 | 84.00 | -41.73 | 104.16 | 0.6764 | 625.0 | 557.6 | |
| 20.18 | 71.88 | 13.53 | 48.19 | -9.81 | 83.84 | -41.89 | 102.58 | 0.6764 | 924.8 | 398.5 | |
| 1.35 | -3.00 | 0.91 | -3.00 | -10.14 | 83.58 | -42.15 | 103.02 | 0.6803 | 671.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -11.12 | 83.20 | -42.53 | 104.35 | 0.6869 | 462.0 | 483.4 | |
| 0.63 | 1.71 | 0.44 | 1.20 | -10.95 | 81.26 | -44.46 | 103.69 | 0.7101 | 628.6 | 503.0 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -10.16 | 81.41 | -44.32 | 102.60 | 0.7069 | 418.0 | 285.1 | |
| 0.00 | 3.60 | 0.00 | 2.55 | -12.15 | 80.84 | -44.88 | 105.26 | 0.7174 | 679.0 | 596.5 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -10.37 | 81.15 | -44.57 | 102.85 | 0.7104 | 325.0 | 279.9 | |
| 0.00 | 3.06 | 0.00 | 2.21 | -12.00 | 79.90 | -45.83 | 104.85 | 0.7281 | 730.0 | 611.9 | |
| 0.00 | 1.53 | 0.00 | 1.10 | -11.76 | 79.91 | -45.82 | 104.52 | 0.7276 | 540.0 | 513.9 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -12.19 | 79.77 | -45.96 | 105.08 | 0.7300 | 521.0 | 424.1 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -11.97 | 79.64 | -46.09 | 104.75 | 0.7311 | 663.0 | 577.6 | |
| 3.33 | 5.85 | 2.45 | 4.30 | -12.29 | 78.88 | -46.84 | 105.03 | 0.7403 | 598.2 | 393.4 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -10.41 | 79.24 | -46.48 | 102.57 | 0.7330 | -625.0 | -600.3 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -11.15 | 78.91 | -46.81 | 103.50 | 0.7380 | -568.0 | -475.6 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -10.26 | 79.09 | -46.63 | 102.33 | 0.7345 | -558.0 | -476.9 | |
| 0.00 | 2.52 | 0.00 | 1.84 | -10.59 | 78.98 | -46.74 | 102.77 | 0.7363 | -681.0 | -530.2 | |
| 0.81 | 1.89 | 0.59 | 1.39 | -10.96 | 78.81 | -46.91 | 103.23 | 0.7388 | -597.0 | -469.7 | |
| 0.45 | 9.46 | 0.34 | 7.18 | -12.53 | 77.25 | -48.48 | 105.02 | 0.7590 | -799.0 | -525.4 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -12.81 | 77.18 | -48.55 | 105.37 | 0.7603 | -514.0 | -384.2 | |
| 22.88 | 138.89 | 17.23 | 105.57 | -11.33 | 77.40 | -48.33 | 103.47 | 0.7554 | -950.8 | -219.9 | |
| 0.00 | 1.71 | 0.00 | 1.30 | -12.65 | 76.93 | -48.79 | 105.12 | 0.7626 | -521.0 | -476.8 | |
| 2.52 | -22.00 | 1.94 | -22.00 | -12.33 | 76.49 | -49.23 | 104.62 | 0.7669 | -704.1 | 999999 | |
| 11.89 | -22.00 | 9.13 | -22.00 | -11.92 | 76.50 | -49.23 | 104.10 | 0.7662 | -815.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -11.78 | 75.72 | -50.01 | 103.78 | 0.7745 | 174.0 | 153.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
