SDO HMI 2014-05-22 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.88 | 0.00 | 6.76 | -25.61 | 107.94 | -17.24 | 147.14 | 0.4861 | 584.5 | 544.0 | |
|
previous
or next observation for the same group /

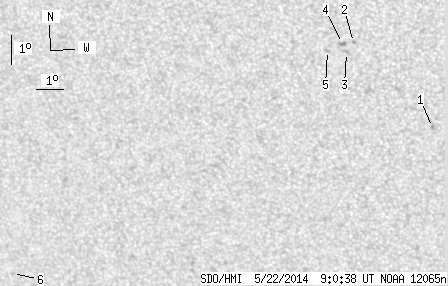

back to the solar disc SDO HMI 2014-05-22 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.81 | -27.03 | 112.13 | -13.05 | 154.76 | 0.4735 | 768.0 | 657.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -24.18 | 109.74 | -15.44 | 147.51 | 0.4540 | 915.0 | 785.1 | |
| 0.00 | 3.60 | 0.00 | 2.01 | -24.51 | 109.45 | -15.73 | 147.48 | 0.4605 | 807.0 | 634.0 | |
| 0.00 | 2.52 | 0.00 | 1.40 | -24.21 | 109.35 | -15.83 | 146.93 | 0.4577 | 889.0 | 803.2 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -24.44 | 108.80 | -16.38 | 146.35 | 0.4651 | 687.0 | 573.2 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -31.85 | 95.24 | -29.94 | 139.92 | 0.6608 | -559.0 | -461.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
