SDO HMI 2014-05-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 45.54 | 0.00 | 25.24 | -18.42 | 145.07 | 20.44 | 227.98 | 0.4428 | 503.5 | 347.4 | |
|
previous
or next observation for the same group /

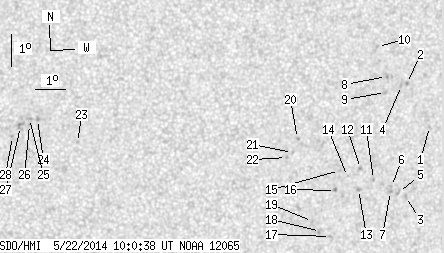

back to the solar disc SDO HMI 2014-05-22 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.50 | 149.95 | 25.32 | 236.20 | 0.4928 | 786.0 | 659.9 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -16.16 | 148.95 | 24.33 | 237.69 | 0.4701 | 728.0 | 649.9 | |
| 0.00 | 2.25 | 0.00 | 1.29 | -19.72 | 149.45 | 24.82 | 231.87 | 0.5043 | 658.0 | 448.4 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -16.22 | 148.79 | 24.16 | 237.40 | 0.4684 | 840.0 | 598.2 | |
| 0.00 | 2.61 | 0.00 | 1.49 | -19.60 | 149.18 | 24.55 | 231.80 | 0.5000 | 661.0 | 619.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -19.41 | 148.90 | 24.27 | 231.82 | 0.4951 | 918.0 | 715.2 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -19.57 | 148.89 | 24.26 | 231.54 | 0.4964 | 798.0 | 702.6 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -15.94 | 148.24 | 23.61 | 237.37 | 0.4591 | 804.0 | 839.0 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -16.45 | 148.27 | 23.64 | 236.45 | 0.4633 | 642.0 | 557.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -15.01 | 147.82 | 23.19 | 238.77 | 0.4466 | 809.0 | 643.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -19.20 | 148.23 | 23.60 | 231.47 | 0.4853 | 840.0 | 802.2 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -18.85 | 147.73 | 23.10 | 231.50 | 0.4763 | 774.0 | 513.7 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -19.52 | 147.75 | 23.13 | 230.39 | 0.4825 | 945.0 | 756.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -19.11 | 147.31 | 22.68 | 230.58 | 0.4735 | 616.0 | 436.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.92 | 147.00 | 22.38 | 230.55 | 0.4682 | 832.0 | 777.2 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -19.56 | 146.96 | 22.33 | 229.39 | 0.4734 | 898.0 | 821.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.03 | 147.00 | 22.38 | 227.00 | 0.4877 | 614.0 | 498.4 | |
| 0.00 | 3.60 | 0.00 | 2.03 | -20.88 | 146.63 | 22.00 | 226.81 | 0.4820 | 684.0 | 495.0 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -20.56 | 146.30 | 21.67 | 226.92 | 0.4753 | 753.0 | 549.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -17.92 | 145.43 | 20.80 | 230.42 | 0.4402 | 819.0 | 700.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -18.37 | 145.31 | 20.68 | 229.46 | 0.4429 | 723.0 | 577.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.53 | 145.13 | 20.50 | 228.93 | 0.4422 | 856.0 | 756.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.11 | 138.09 | 13.46 | 218.20 | 0.3594 | -768.0 | -603.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -17.39 | 136.73 | 12.10 | 216.64 | 0.3367 | -938.0 | -856.8 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -17.36 | 136.47 | 11.84 | 216.11 | 0.3338 | -866.0 | -713.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -17.55 | 136.48 | 11.85 | 215.79 | 0.3364 | -688.0 | -559.8 | |
| 0.00 | 4.59 | 0.00 | 2.41 | -17.61 | 136.19 | 11.57 | 215.02 | 0.3344 | -509.0 | -584.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -17.93 | 135.95 | 11.33 | 213.90 | 0.3364 | 868.0 | 598.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
