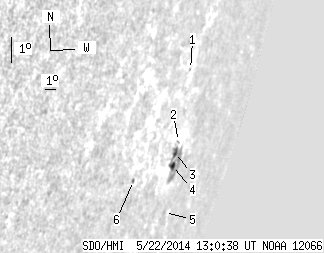

SDO HMI 2014-05-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.03 | 32.32 | 12.20 | 66.83 | -18.39 | 198.70 | 75.72 | 251.49 | 0.9708 | 205.2 | -101.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.69 | -15.56 | 197.65 | 74.67 | 254.36 | 0.9659 | 171.0 | 169.3 | |
| 0.00 | 0.99 | 0.00 | 2.01 | -17.82 | 198.72 | 75.74 | 252.08 | 0.9708 | 356.0 | 304.8 | |
| 2.88 | 27.46 | 5.88 | 57.51 | -18.17 | 198.78 | 75.79 | 251.72 | 0.9711 | 326.7 | -131.5 | |
| 2.70 | -3.00 | 5.58 | -3.00 | -18.58 | 198.92 | 75.94 | 251.31 | 0.9718 | 165.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 2.81 | -20.06 | 199.99 | 77.01 | 249.84 | 0.9761 | -110.0 | -57.2 | |
| 0.45 | 1.71 | 0.74 | 2.81 | -19.17 | 195.02 | 72.04 | 250.45 | 0.9548 | -192.4 | -107.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
