SDO HMI 2014-05-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.56 | 273.27 | 50.99 | 189.63 | -11.17 | 79.33 | -43.65 | 104.17 | 0.6998 | -168.8 | -49.2 | |
|
previous
or next observation for the same group /

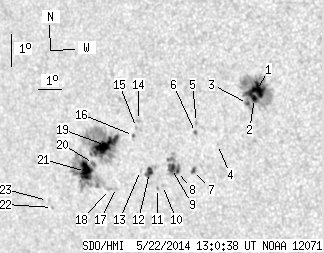

back to the solar disc SDO HMI 2014-05-22 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.57 | 78.43 | 10.63 | 50.34 | -9.70 | 84.08 | -38.90 | 103.11 | 0.6378 | 968.7 | 382.7 | |
| 3.51 | -1.00 | 2.26 | -1.00 | -9.95 | 83.97 | -39.01 | 103.46 | 0.6398 | 806.4 | 999999 | |
| 0.72 | -1.00 | 0.47 | -1.00 | -10.10 | 83.67 | -39.31 | 103.61 | 0.6440 | 574.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -11.33 | 82.26 | -40.73 | 105.12 | 0.6649 | 662.0 | 461.6 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -10.63 | 81.51 | -41.47 | 103.90 | 0.6728 | 544.0 | 486.7 | |
| 0.45 | 1.35 | 0.30 | 0.90 | -10.94 | 81.42 | -41.56 | 104.33 | 0.6746 | 699.4 | 566.1 | |
| 1.26 | 2.52 | 0.85 | 1.70 | -12.11 | 81.12 | -41.86 | 105.96 | 0.6809 | 761.3 | 639.6 | |
| 0.99 | 18.64 | 0.68 | 12.73 | -12.12 | 80.44 | -42.54 | 105.80 | 0.6893 | 457.8 | 338.7 | |
| 4.50 | -8.00 | 3.08 | -8.00 | -12.03 | 80.21 | -42.77 | 105.60 | 0.6919 | 421.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -12.54 | 79.72 | -43.26 | 106.21 | 0.6990 | -715.0 | -534.1 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -12.63 | 79.49 | -43.50 | 106.28 | 0.7020 | -547.0 | -484.0 | |
| 4.41 | 8.64 | 3.07 | 6.00 | -12.13 | 79.25 | -43.74 | 105.51 | 0.7038 | 617.8 | 456.5 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -12.06 | 78.87 | -44.11 | 105.33 | 0.7081 | 266.0 | 153.2 | |
| 0.00 | 2.07 | 0.00 | 1.44 | -10.52 | 79.09 | -43.90 | 103.21 | 0.7025 | -730.0 | -549.8 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -10.73 | 78.96 | -44.02 | 103.49 | 0.7044 | -504.0 | -505.6 | |
| 0.45 | 1.62 | 0.31 | 1.13 | -10.98 | 78.79 | -44.20 | 103.79 | 0.7070 | -631.8 | -626.2 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -12.56 | 77.71 | -45.27 | 105.75 | 0.7228 | -162.0 | -201.5 | |
| 0.00 | 2.07 | 0.00 | 1.49 | -12.61 | 77.39 | -45.60 | 105.75 | 0.7267 | -775.0 | -632.7 | |
| 22.96 | 84.37 | 16.41 | 60.46 | -11.26 | 77.50 | -45.48 | 103.92 | 0.7227 | -924.2 | -335.6 | |
| 1.26 | 65.10 | 0.91 | 47.51 | -11.80 | 76.85 | -46.13 | 104.53 | 0.7313 | -765.4 | -240.3 | |
| 16.48 | -20.00 | 12.02 | -20.00 | -12.03 | 76.44 | -46.54 | 104.76 | 0.7365 | -800.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -13.11 | 74.65 | -48.33 | 105.82 | 0.7585 | -412.0 | -373.5 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -12.89 | 74.47 | -48.51 | 105.50 | 0.7600 | -308.0 | -370.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
