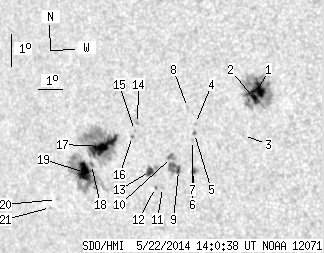

SDO HMI 2014-05-22 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.68 | 281.79 | 48.66 | 194.13 | -11.19 | 79.23 | -43.21 | 104.30 | 0.6944 | -189.8 | -33.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.78 | 76.80 | 8.76 | 48.90 | -9.68 | 84.13 | -38.30 | 103.23 | 0.6298 | 1034.5 | 421.6 | |
| 5.85 | -1.00 | 3.73 | -1.00 | -9.93 | 83.98 | -38.45 | 103.57 | 0.6324 | 817.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -11.05 | 83.37 | -39.06 | 105.16 | 0.6430 | 519.0 | 459.4 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -10.64 | 81.50 | -40.93 | 104.05 | 0.6660 | 599.0 | 466.0 | |
| 0.45 | 1.53 | 0.30 | 1.02 | -10.95 | 81.41 | -41.03 | 104.48 | 0.6679 | 670.4 | 572.8 | |
| 1.26 | 2.70 | 0.84 | 1.81 | -12.12 | 81.15 | -41.28 | 106.13 | 0.6737 | 778.8 | 600.4 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -11.16 | 81.29 | -41.14 | 104.77 | 0.6698 | 484.0 | 418.3 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -10.15 | 81.25 | -41.18 | 103.25 | 0.6682 | 421.0 | 333.5 | |
| 2.34 | 12.42 | 1.58 | 8.40 | -12.07 | 80.54 | -41.89 | 105.90 | 0.6813 | 560.0 | 314.0 | |
| 0.00 | 4.59 | 0.00 | 3.11 | -11.67 | 80.32 | -42.11 | 105.26 | 0.6830 | 799.0 | 663.8 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -12.58 | 79.76 | -42.67 | 106.43 | 0.6920 | -722.0 | -509.9 | |
| 0.36 | 1.26 | 0.25 | 0.87 | -12.58 | 79.46 | -42.97 | 106.34 | 0.6955 | -549.5 | -491.3 | |
| 4.23 | 9.54 | 2.91 | 6.56 | -12.08 | 79.31 | -43.12 | 105.60 | 0.6962 | 631.3 | 415.0 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -10.59 | 79.08 | -43.35 | 103.43 | 0.6960 | -755.0 | -621.7 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -10.80 | 78.92 | -43.51 | 103.70 | 0.6984 | -682.0 | -529.7 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -10.99 | 78.80 | -43.63 | 103.93 | 0.7002 | -747.0 | -713.1 | |
| 24.13 | 87.24 | 17.09 | 61.92 | -11.26 | 77.44 | -44.99 | 104.03 | 0.7170 | -913.4 | -334.3 | |
| 0.72 | 75.63 | 0.52 | 54.63 | -11.81 | 76.84 | -45.59 | 104.65 | 0.7250 | -815.9 | -251.2 | |
| 17.56 | -18.00 | 12.68 | -18.00 | -12.05 | 76.48 | -45.96 | 104.90 | 0.7297 | -819.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -12.85 | 75.01 | -47.42 | 105.67 | 0.7479 | -508.0 | -491.1 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -13.09 | 74.67 | -47.76 | 105.92 | 0.7521 | -355.0 | -376.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
