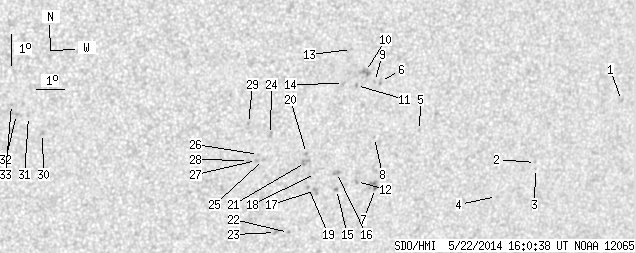

SDO HMI 2014-05-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 58.95 | 0.27 | 33.96 | -18.32 | 147.37 | 26.05 | 235.06 | 0.5090 | 494.9 | 528.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.92 | -16.68 | 158.21 | 36.88 | 245.44 | 0.6343 | 540.0 | 470.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -18.69 | 155.29 | 33.96 | 240.82 | 0.6083 | 623.0 | 528.0 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -18.88 | 155.33 | 34.01 | 240.56 | 0.6099 | 509.0 | 520.7 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -19.80 | 154.04 | 32.71 | 238.35 | 0.5996 | -270.0 | -386.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -17.75 | 150.73 | 29.41 | 239.23 | 0.5464 | 119.0 | 139.9 | |
| 0.00 | 2.34 | 0.00 | 1.35 | -16.22 | 149.07 | 27.74 | 240.55 | 0.5154 | 653.0 | 553.0 | |
| 0.45 | 7.02 | 0.27 | 4.13 | -19.60 | 149.47 | 28.14 | 235.17 | 0.5434 | 695.0 | 694.3 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -17.99 | 149.14 | 27.81 | 237.56 | 0.5279 | 773.0 | 598.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -16.23 | 148.86 | 27.53 | 240.37 | 0.5126 | 875.0 | 712.1 | |
| 0.00 | 6.03 | 0.00 | 3.46 | -15.92 | 148.49 | 27.16 | 240.63 | 0.5058 | 765.0 | 720.3 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -16.36 | 148.24 | 26.91 | 239.63 | 0.5054 | 783.0 | 680.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -19.39 | 148.74 | 27.41 | 234.88 | 0.5330 | 854.0 | 710.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -15.24 | 147.90 | 26.57 | 241.39 | 0.4936 | 815.0 | 614.2 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -16.30 | 147.77 | 26.44 | 239.33 | 0.4989 | 701.0 | 513.8 | |
| 0.00 | 1.80 | 0.00 | 1.05 | -19.65 | 148.06 | 26.73 | 233.84 | 0.5268 | 931.0 | 768.0 | |
| 0.00 | 3.15 | 0.00 | 1.83 | -19.11 | 147.96 | 26.64 | 234.64 | 0.5215 | 773.0 | 730.4 | |
| 0.00 | 3.42 | 0.00 | 1.98 | -19.70 | 147.31 | 25.98 | 233.06 | 0.5181 | 837.0 | 648.7 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -19.15 | 147.22 | 25.89 | 233.87 | 0.5127 | 548.0 | 447.8 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -19.60 | 147.04 | 25.72 | 232.96 | 0.5142 | 903.0 | 762.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -18.52 | 146.79 | 25.47 | 234.53 | 0.5026 | 780.0 | 654.8 | |
| 0.00 | 4.86 | 0.00 | 2.79 | -18.81 | 146.81 | 25.48 | 234.05 | 0.5050 | 723.0 | 715.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.05 | 146.58 | 25.25 | 230.15 | 0.5207 | 718.0 | 564.7 | |
| 0.00 | 2.25 | 0.00 | 1.30 | -21.06 | 146.12 | 24.79 | 229.66 | 0.5154 | 711.0 | 572.7 | |
| 0.00 | 2.79 | 0.00 | 1.58 | -17.94 | 145.44 | 24.11 | 234.19 | 0.4812 | 704.0 | 588.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -18.73 | 145.31 | 23.98 | 232.66 | 0.4861 | 133.0 | 264.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.58 | 145.11 | 23.78 | 232.72 | 0.4824 | 822.0 | 684.3 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -18.77 | 145.07 | 23.74 | 232.34 | 0.4835 | 728.0 | 520.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -18.77 | 144.79 | 23.46 | 232.04 | 0.4801 | 779.0 | 690.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.60 | 144.62 | 23.30 | 233.94 | 0.4683 | 929.0 | 734.8 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -17.98 | 137.68 | 16.36 | 223.76 | 0.3889 | -809.0 | -632.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -17.45 | 137.17 | 15.84 | 223.90 | 0.3772 | -686.0 | -603.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -17.38 | 136.77 | 15.44 | 223.30 | 0.3720 | -859.0 | -688.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -17.07 | 136.58 | 15.25 | 223.57 | 0.3663 | -823.0 | -743.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
