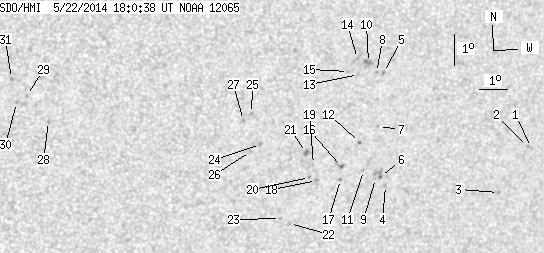

SDO HMI 2014-05-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 45.36 | 0.59 | 26.40 | -18.44 | 147.42 | 27.20 | 235.86 | 0.5238 | 513.1 | 512.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.79 | -18.55 | 155.12 | 34.90 | 241.59 | 0.6190 | 623.0 | 579.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -18.52 | 154.96 | 34.74 | 241.54 | 0.6169 | 758.0 | 659.1 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -20.00 | 154.18 | 33.96 | 238.85 | 0.6156 | -799.0 | -637.7 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -19.84 | 149.84 | 29.62 | 236.02 | 0.5629 | 661.0 | 526.6 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -16.27 | 149.12 | 28.90 | 241.35 | 0.5308 | 759.0 | 593.1 | |
| 0.45 | 6.12 | 0.27 | 3.64 | -19.55 | 149.60 | 29.38 | 236.27 | 0.5580 | 721.0 | 716.8 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -17.97 | 149.23 | 29.01 | 238.55 | 0.5428 | 681.0 | 536.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -16.27 | 148.87 | 28.65 | 241.15 | 0.5275 | 721.0 | 648.0 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -19.62 | 149.43 | 29.21 | 236.03 | 0.5564 | 525.0 | 454.0 | |
| 0.00 | 4.23 | 0.00 | 2.45 | -15.96 | 148.53 | 28.31 | 241.44 | 0.5212 | 784.0 | 722.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -19.37 | 148.94 | 28.72 | 236.03 | 0.5487 | 838.0 | 685.5 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -18.48 | 148.63 | 28.41 | 237.22 | 0.5388 | 662.0 | 597.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -16.34 | 148.23 | 28.01 | 240.54 | 0.5197 | 800.0 | 593.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -15.84 | 148.12 | 27.90 | 241.34 | 0.5151 | 795.0 | 600.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -16.25 | 147.86 | 27.64 | 240.41 | 0.5142 | 731.0 | 638.5 | |
| 0.54 | 3.24 | 0.32 | 1.90 | -19.25 | 148.11 | 27.89 | 235.52 | 0.5379 | 845.2 | 716.1 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -19.67 | 148.15 | 27.93 | 234.89 | 0.5414 | 801.0 | 721.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -19.71 | 147.29 | 27.07 | 234.05 | 0.5313 | 877.0 | 761.2 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -19.20 | 147.09 | 26.87 | 234.70 | 0.5250 | 678.0 | 621.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -19.62 | 147.02 | 26.80 | 233.95 | 0.5273 | 822.0 | 652.5 | |
| 0.00 | 2.97 | 0.00 | 1.72 | -18.82 | 146.77 | 26.55 | 235.04 | 0.5183 | 970.0 | 836.6 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -21.10 | 146.57 | 26.35 | 231.16 | 0.5337 | 632.0 | 469.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -20.94 | 146.21 | 25.99 | 231.06 | 0.5283 | 731.0 | 616.0 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -18.59 | 145.09 | 24.88 | 233.82 | 0.4959 | 943.0 | 731.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.61 | 144.63 | 24.41 | 235.07 | 0.4825 | 908.0 | 766.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -18.82 | 144.78 | 24.56 | 233.11 | 0.4939 | 678.0 | 585.9 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -17.84 | 144.38 | 24.17 | 234.42 | 0.4811 | 846.0 | 669.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -17.93 | 137.74 | 17.52 | 225.73 | 0.4016 | -837.0 | -661.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -17.12 | 136.92 | 16.71 | 225.99 | 0.3836 | -706.0 | -591.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -17.34 | 136.61 | 16.40 | 225.04 | 0.3824 | -878.0 | -771.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -16.59 | 136.38 | 16.16 | 226.14 | 0.3716 | -826.0 | -724.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
