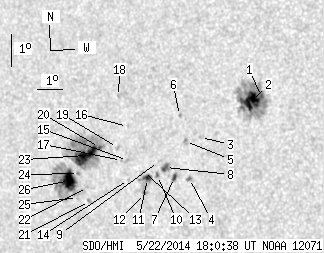

SDO HMI 2014-05-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.12 | 297.60 | 45.89 | 197.27 | -11.10 | 79.49 | -40.73 | 104.79 | 0.6634 | -176.2 | -16.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 90.11 | 0.50 | 55.62 | -9.61 | 84.63 | -35.58 | 103.86 | 0.5931 | 1015.9 | 422.3 | |
| 18.09 | -1.00 | 11.17 | -1.00 | -9.72 | 84.24 | -35.98 | 103.94 | 0.5988 | 1044.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -10.82 | 82.11 | -38.11 | 105.07 | 0.6300 | 749.0 | 664.2 | |
| 0.72 | 2.43 | 0.46 | 1.57 | -12.07 | 81.47 | -38.75 | 106.82 | 0.6417 | 766.8 | 575.7 | |
| 0.00 | 2.34 | 0.00 | 1.50 | -10.93 | 81.50 | -38.72 | 105.07 | 0.6383 | 694.0 | 598.3 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -10.13 | 81.38 | -38.83 | 103.80 | 0.6379 | 553.0 | 420.8 | |
| 1.98 | 3.78 | 1.29 | 2.46 | -12.03 | 80.88 | -39.34 | 106.57 | 0.6491 | 532.3 | 393.2 | |
| 2.70 | 6.39 | 1.76 | 4.16 | -11.71 | 80.57 | -39.65 | 106.00 | 0.6522 | 845.3 | 658.4 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -11.52 | 80.32 | -39.90 | 105.64 | 0.6549 | 442.0 | 394.1 | |
| 0.81 | 2.52 | 0.53 | 1.65 | -11.95 | 80.20 | -40.01 | 106.25 | 0.6575 | 577.1 | 403.9 | |
| 3.69 | 14.22 | 2.44 | 9.41 | -12.04 | 79.78 | -40.44 | 106.26 | 0.6631 | 734.6 | -32.1 | |
| 0.63 | -11.00 | 0.42 | -11.00 | -12.50 | 79.57 | -40.65 | 106.88 | 0.6669 | -757.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -11.82 | 79.66 | -40.56 | 105.90 | 0.6641 | 281.0 | 231.4 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -12.05 | 79.00 | -41.22 | 106.06 | 0.6729 | 340.0 | 177.9 | |
| 0.00 | 1.89 | 0.00 | 1.26 | -11.47 | 79.06 | -41.16 | 105.22 | 0.6707 | -790.0 | -643.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -10.42 | 79.24 | -40.98 | 103.72 | 0.6662 | -716.0 | -581.0 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -11.46 | 78.82 | -41.40 | 105.15 | 0.6738 | -528.0 | -535.6 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -9.50 | 79.02 | -41.20 | 102.29 | 0.6672 | -678.0 | -591.4 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -11.06 | 78.72 | -41.50 | 104.53 | 0.6740 | -798.0 | -590.0 | |
| 1.17 | 90.56 | 0.79 | 61.92 | -11.04 | 77.97 | -42.24 | 104.33 | 0.6833 | -948.0 | -321.2 | |
| 0.00 | 2.34 | 0.00 | 1.61 | -12.69 | 77.23 | -42.99 | 106.51 | 0.6961 | -760.0 | -602.5 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -12.26 | 77.23 | -42.99 | 105.90 | 0.6950 | -807.0 | -627.9 | |
| 22.14 | -20.00 | 15.15 | -20.00 | -11.27 | 77.34 | -42.88 | 104.52 | 0.6916 | -934.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -11.82 | 76.94 | -43.28 | 105.20 | 0.6977 | -809.0 | -728.8 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -12.56 | 76.74 | -43.48 | 106.19 | 0.7016 | -583.0 | -486.2 | |
| 16.38 | 69.23 | 11.38 | 48.25 | -12.03 | 76.51 | -43.71 | 105.39 | 0.7033 | -917.8 | -175.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
