SDO HMI 2014-05-22 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.47 | 280.23 | 46.41 | 184.59 | -11.12 | 79.36 | -40.30 | 104.93 | 0.6581 | -189.9 | 0.6 | |
|
previous
or next observation for the same group /

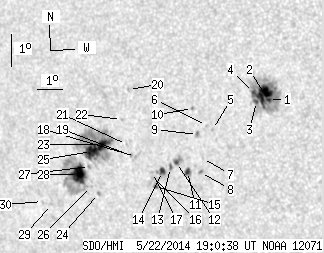

back to the solar disc SDO HMI 2014-05-22 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 82.37 | 1.05 | 50.47 | -9.89 | 84.42 | -35.24 | 104.44 | 0.5892 | 1072.8 | 461.6 | |
| 15.84 | -1.00 | 9.71 | -1.00 | -9.70 | 84.29 | -35.37 | 104.09 | 0.5905 | 1073.9 | 999999 | |
| 1.44 | -1.00 | 0.89 | -1.00 | -9.94 | 83.96 | -35.71 | 104.39 | 0.5957 | 609.7 | 999999 | |
| 1.44 | -1.00 | 0.89 | -1.00 | -9.67 | 83.88 | -35.78 | 103.90 | 0.5960 | 596.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -10.77 | 82.15 | -37.51 | 105.18 | 0.6221 | 704.0 | 665.6 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -10.64 | 81.93 | -37.73 | 104.91 | 0.6246 | 710.0 | 630.9 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -11.65 | 81.62 | -38.05 | 106.40 | 0.6314 | 644.0 | 598.3 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -12.08 | 81.47 | -38.20 | 107.02 | 0.6346 | 798.0 | 747.1 | |
| 0.00 | 2.43 | 0.00 | 1.55 | -10.91 | 81.54 | -38.12 | 105.22 | 0.6305 | 790.0 | 596.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -10.11 | 81.46 | -38.20 | 103.94 | 0.6296 | 576.0 | 483.4 | |
| 2.61 | 4.77 | 1.68 | 3.07 | -12.04 | 80.96 | -38.71 | 106.79 | 0.6411 | 418.4 | 140.1 | |
| 1.80 | 5.67 | 1.16 | 3.66 | -11.76 | 80.57 | -39.10 | 106.23 | 0.6453 | 850.6 | 711.9 | |
| 0.81 | 2.25 | 0.53 | 1.46 | -11.90 | 80.30 | -39.36 | 106.38 | 0.6491 | 512.8 | 447.0 | |
| 2.79 | 5.49 | 1.82 | 3.59 | -12.02 | 79.96 | -39.71 | 106.45 | 0.6538 | 729.9 | 443.4 | |
| 0.99 | 2.88 | 0.65 | 1.89 | -12.48 | 79.59 | -40.07 | 107.02 | 0.6597 | -665.5 | -468.1 | |
| 0.00 | 1.35 | 0.00 | 0.89 | -12.20 | 79.52 | -40.14 | 106.59 | 0.6598 | 357.0 | 153.7 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -12.04 | 79.55 | -40.12 | 106.36 | 0.6590 | 406.0 | 311.3 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -11.54 | 78.94 | -40.72 | 105.44 | 0.6654 | -733.0 | -617.5 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -11.50 | 78.75 | -40.92 | 105.34 | 0.6678 | -639.0 | -540.9 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -9.48 | 78.99 | -40.67 | 102.37 | 0.6604 | -685.0 | -550.3 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -11.16 | 78.64 | -41.02 | 104.80 | 0.6683 | -610.0 | -505.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -10.39 | 78.57 | -41.10 | 103.64 | 0.6676 | -643.0 | -556.6 | |
| 9.09 | 86.69 | 6.13 | 58.75 | -11.14 | 77.65 | -42.01 | 104.53 | 0.6807 | -1084.3 | -340.8 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -12.64 | 77.19 | -42.47 | 106.58 | 0.6897 | -807.0 | -655.9 | |
| 12.78 | -23.00 | 8.69 | -23.00 | -11.35 | 77.15 | -42.51 | 104.71 | 0.6873 | -858.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -12.42 | 76.94 | -42.72 | 106.20 | 0.6923 | -603.0 | -558.6 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -11.80 | 76.98 | -42.68 | 105.32 | 0.6904 | -771.0 | -682.9 | |
| 19.17 | 68.60 | 13.21 | 47.42 | -12.04 | 76.46 | -43.20 | 105.53 | 0.6972 | -907.9 | -101.2 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -12.94 | 75.10 | -44.56 | 106.45 | 0.7154 | -706.0 | -572.4 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -12.84 | 74.73 | -44.94 | 106.22 | 0.7195 | -404.0 | -419.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
