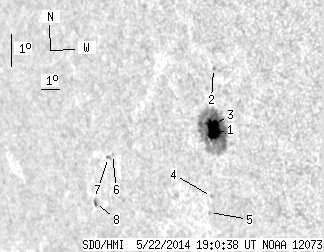

SDO HMI 2014-05-22 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.43 | 107.93 | 17.18 | 90.74 | -10.69 | 66.17 | -53.49 | 101.94 | 0.8091 | 723.8 | 268.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.63 | 99.38 | 8.01 | 82.73 | -10.70 | 66.60 | -53.07 | 102.00 | 0.8052 | 862.9 | 281.0 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -8.71 | 67.00 | -52.66 | 99.57 | 0.7992 | -503.0 | -387.6 | |
| 9.81 | -1.00 | 8.16 | -1.00 | -10.45 | 66.55 | -53.11 | 101.69 | 0.8054 | 976.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.15 | -12.63 | 65.89 | -53.77 | 104.28 | 0.8144 | 583.0 | 402.0 | |
| 0.00 | 1.08 | 0.00 | 0.92 | -13.12 | 65.63 | -54.03 | 104.84 | 0.8176 | 394.0 | 418.7 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -11.19 | 60.77 | -58.89 | 101.97 | 0.8606 | 435.0 | 354.9 | |
| 0.00 | 1.71 | 0.00 | 1.67 | -11.28 | 60.50 | -59.16 | 102.05 | 0.8630 | 538.0 | 456.8 | |
| 0.99 | 2.70 | 1.01 | 2.75 | -12.67 | 59.18 | -60.48 | 103.52 | 0.8752 | -272.7 | -309.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
