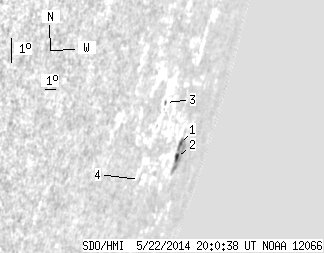

SDO HMI 2014-05-22 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.49 | 23.05 | 15.48 | 64.13 | -18.31 | 198.64 | 79.53 | 251.71 | 0.9838 | 131.4 | -91.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.88 | 20.44 | 8.09 | 58.85 | -18.11 | 198.97 | 79.86 | 251.92 | 0.9850 | 208.1 | -98.4 | |
| 2.61 | -1.00 | 7.39 | -1.00 | -18.53 | 199.01 | 79.90 | 251.50 | 0.9851 | 86.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 2.37 | -16.89 | 194.85 | 75.74 | 253.03 | 0.9707 | 97.0 | 45.0 | |
| 0.00 | 1.44 | 0.00 | 2.91 | -19.36 | 194.63 | 75.53 | 250.48 | 0.9703 | -120.0 | -99.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
