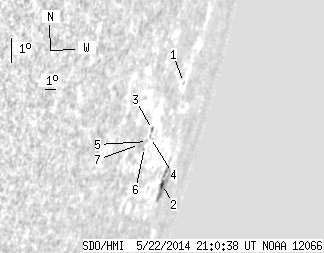

SDO HMI 2014-05-22 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.52 | 24.58 | 7.56 | 68.11 | -18.17 | 198.19 | 79.64 | 251.84 | 0.9838 | 28.0 | -55.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.70 | -15.28 | 197.52 | 78.96 | 254.78 | 0.9821 | 174.0 | 132.3 | |
| 2.52 | 17.56 | 7.56 | 53.52 | -18.47 | 199.14 | 80.59 | 251.57 | 0.9870 | 63.6 | -62.2 | |
| 0.00 | 1.71 | 0.00 | 3.60 | -16.84 | 194.91 | 76.36 | 253.11 | 0.9731 | 133.0 | 10.6 | |
| 0.00 | 1.08 | 0.00 | 2.29 | -17.09 | 194.96 | 76.41 | 252.85 | 0.9733 | 85.0 | 91.9 | |
| 0.00 | 0.81 | 0.00 | 1.68 | -17.22 | 194.72 | 76.17 | 252.70 | 0.9724 | -247.0 | -222.4 | |
| 0.00 | 1.44 | 0.00 | 2.96 | -17.42 | 194.57 | 76.02 | 252.50 | 0.9719 | -225.0 | -138.8 | |
| 0.00 | 1.71 | 0.00 | 3.36 | -17.35 | 193.82 | 75.27 | 252.54 | 0.9689 | -21.0 | -19.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
