SDO HMI 2014-05-22 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.45 | 309.50 | 42.39 | 200.14 | -11.09 | 79.48 | -39.07 | 105.24 | 0.6422 | -143.2 | 0.6 | |
|
previous
or next observation for the same group /

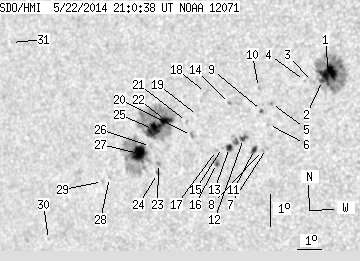

back to the solar disc SDO HMI 2014-05-22 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.29 | 93.27 | 10.45 | 56.32 | -9.75 | 84.30 | -34.25 | 104.53 | 0.5751 | 1089.9 | 457.7 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -9.96 | 84.06 | -34.50 | 104.80 | 0.5792 | 769.3 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.26 | -9.98 | 83.68 | -34.88 | 104.72 | 0.5844 | 430.0 | 325.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -9.95 | 83.38 | -35.17 | 104.56 | 0.5884 | 556.0 | 508.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -10.63 | 82.03 | -36.52 | 105.26 | 0.6085 | 803.0 | 668.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -11.27 | 81.82 | -36.73 | 106.23 | 0.6131 | 618.0 | 558.2 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -12.01 | 81.63 | -36.93 | 107.34 | 0.6178 | 917.0 | 683.6 | |
| 0.00 | 1.44 | 0.00 | 0.91 | -12.06 | 81.46 | -37.09 | 107.37 | 0.6202 | 598.0 | 540.4 | |
| 0.54 | 1.53 | 0.34 | 0.96 | -10.83 | 81.61 | -36.94 | 105.46 | 0.6147 | 726.0 | 623.0 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -10.13 | 81.60 | -36.96 | 104.32 | 0.6130 | 630.0 | 498.6 | |
| 2.43 | 3.78 | 1.54 | 2.39 | -12.03 | 81.16 | -37.40 | 107.21 | 0.6241 | 582.1 | 367.8 | |
| 2.16 | 4.95 | 1.37 | 3.14 | -11.68 | 80.78 | -37.77 | 106.54 | 0.6280 | 884.2 | 692.0 | |
| 2.97 | 9.72 | 1.90 | 6.22 | -11.95 | 80.18 | -38.37 | 106.76 | 0.6365 | 716.5 | 543.3 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -10.59 | 80.40 | -38.15 | 104.72 | 0.6301 | 679.0 | 481.1 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -11.94 | 79.91 | -38.65 | 106.66 | 0.6400 | 584.0 | 548.3 | |
| 1.08 | 5.04 | 0.70 | 3.26 | -12.43 | 79.58 | -38.97 | 107.31 | 0.6456 | -715.5 | -306.0 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -12.03 | 79.65 | -38.90 | 106.72 | 0.6436 | 517.0 | 373.1 | |
| 0.00 | 2.61 | 0.00 | 1.68 | -10.24 | 79.50 | -39.05 | 103.93 | 0.6410 | -607.0 | -445.9 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -10.94 | 79.07 | -39.48 | 104.89 | 0.6482 | -739.0 | -626.7 | |
| 0.00 | 1.89 | 0.00 | 1.23 | -11.55 | 78.73 | -39.82 | 105.71 | 0.6541 | -619.0 | -562.9 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -11.11 | 78.60 | -39.95 | 105.02 | 0.6547 | -660.0 | -498.0 | |
| 8.37 | 95.79 | 5.54 | 63.76 | -11.06 | 77.75 | -40.80 | 104.73 | 0.6653 | -1041.6 | -312.1 | |
| 0.00 | 1.89 | 0.00 | 1.27 | -12.38 | 77.22 | -41.33 | 106.52 | 0.6751 | -926.0 | -734.6 | |
| 0.54 | 1.80 | 0.36 | 1.21 | -12.69 | 77.12 | -41.43 | 106.94 | 0.6771 | -622.3 | -511.2 | |
| 15.31 | -22.00 | 10.22 | -22.00 | -11.33 | 77.21 | -41.34 | 104.98 | 0.6727 | -914.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.15 | -11.85 | 76.99 | -41.56 | 105.69 | 0.6767 | -784.0 | -632.6 | |
| 14.49 | 68.60 | 9.81 | 46.57 | -12.06 | 76.45 | -42.10 | 105.84 | 0.6838 | -958.4 | -199.0 | |
| 0.00 | 1.35 | 0.00 | 0.94 | -12.77 | 75.07 | -43.48 | 106.50 | 0.7022 | -632.0 | -481.1 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -12.89 | 74.75 | -43.81 | 106.58 | 0.7064 | -629.0 | -490.8 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -14.63 | 71.90 | -46.65 | 108.22 | 0.7430 | -549.0 | -427.2 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -8.53 | 71.57 | -46.98 | 99.97 | 0.7364 | -409.0 | -387.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
