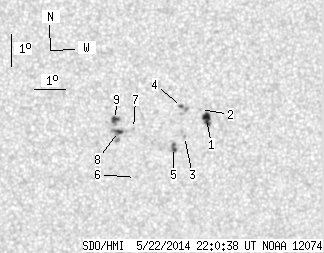

SDO HMI 2014-05-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.67 | 40.59 | 7.81 | 21.57 | -13.65 | 135.55 | 17.55 | 234.66 | 0.3605 | 292.9 | -5.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-22 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.57 | 10.08 | 3.52 | 5.40 | -13.44 | 137.10 | 19.10 | 237.40 | 0.3795 | 950.8 | 608.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.16 | 136.88 | 18.88 | 237.75 | 0.3742 | 815.0 | 644.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -14.00 | 136.42 | 18.42 | 235.20 | 0.3750 | 884.0 | 743.3 | |
| 0.72 | 5.04 | 0.38 | 2.68 | -13.07 | 136.25 | 18.25 | 237.12 | 0.3648 | 891.1 | 802.1 | |
| 2.34 | 4.86 | 1.25 | 2.60 | -14.35 | 136.09 | 18.09 | 233.95 | 0.3736 | 951.3 | 759.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -15.29 | 134.91 | 16.92 | 230.09 | 0.3675 | -555.0 | -393.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -13.77 | 134.73 | 16.73 | 233.25 | 0.3505 | -603.0 | -432.3 | |
| 2.34 | 10.44 | 1.24 | 5.51 | -13.86 | 134.25 | 16.25 | 232.24 | 0.3451 | -894.4 | -663.5 | |
| 2.70 | 6.66 | 1.42 | 3.51 | -13.49 | 134.12 | 16.13 | 232.93 | 0.3400 | -1018.2 | -759.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
