SDO HMI 2014-05-22 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.96 | 43.12 | 6.92 | 22.98 | -13.54 | 135.70 | 18.26 | 235.93 | 0.3691 | 158.6 | 157.0 | |
|
previous
or next observation for the same group /

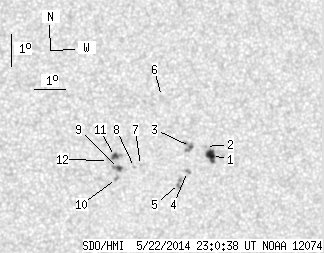

back to the solar disc SDO HMI 2014-05-22 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.47 | 10.00 | 4.01 | 5.37 | -13.42 | 137.21 | 19.76 | 238.25 | 0.3884 | 928.9 | 610.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -13.15 | 136.99 | 19.54 | 238.60 | 0.3832 | 910.0 | 770.4 | |
| 0.99 | 7.02 | 0.53 | 3.75 | -13.15 | 136.49 | 19.05 | 237.97 | 0.3764 | 988.8 | 782.7 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -13.93 | 136.45 | 19.01 | 236.15 | 0.3823 | 1000.0 | 773.1 | |
| 0.00 | 4.32 | 0.00 | 2.32 | -14.30 | 136.22 | 18.78 | 235.01 | 0.3824 | 979.0 | 894.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -11.62 | 135.43 | 17.98 | 240.33 | 0.3496 | -14.0 | 4.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -13.75 | 134.89 | 17.45 | 234.36 | 0.3599 | -302.0 | -234.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -13.82 | 134.70 | 17.26 | 233.93 | 0.3580 | -592.0 | -444.6 | |
| 1.98 | 5.22 | 1.05 | 2.76 | -13.85 | 134.18 | 16.74 | 233.04 | 0.3514 | -998.7 | -767.3 | |
| 0.00 | 2.25 | 0.00 | 1.19 | -14.16 | 134.14 | 16.70 | 232.25 | 0.3538 | -720.0 | -611.9 | |
| 2.52 | 5.58 | 1.33 | 2.95 | -13.48 | 134.02 | 16.58 | 233.68 | 0.3459 | -1037.2 | -778.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -13.61 | 133.84 | 16.39 | 233.08 | 0.3446 | -716.0 | -612.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
