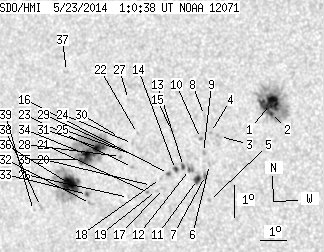

SDO HMI 2014-05-23 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.27 | 285.39 | 42.66 | 179.04 | -11.09 | 79.58 | -36.76 | 105.99 | 0.6120 | -92.7 | -38.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.53 | 80.16 | 12.67 | 47.15 | -9.77 | 84.43 | -31.90 | 105.44 | 0.5424 | 1032.1 | 476.7 | |
| 2.07 | -1.00 | 1.22 | -1.00 | -10.08 | 84.40 | -31.94 | 105.98 | 0.5439 | 844.6 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.47 | -10.75 | 82.44 | -33.90 | 106.40 | 0.5733 | 682.0 | 637.4 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -10.62 | 82.12 | -34.22 | 106.07 | 0.5773 | 738.0 | 642.8 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -12.71 | 81.78 | -34.55 | 109.43 | 0.5889 | 577.0 | 414.0 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -11.60 | 81.95 | -34.39 | 107.66 | 0.5828 | 640.0 | 579.9 | |
| 0.00 | 2.52 | 0.00 | 1.54 | -11.94 | 81.75 | -34.59 | 108.14 | 0.5866 | 926.0 | 694.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -10.10 | 81.96 | -34.37 | 105.12 | 0.5780 | 517.0 | 427.2 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -11.23 | 81.78 | -34.56 | 106.97 | 0.5839 | 675.0 | 597.8 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -10.80 | 81.72 | -34.62 | 106.22 | 0.5833 | 793.0 | 714.1 | |
| 3.69 | 7.03 | 2.26 | 4.31 | -12.06 | 81.43 | -34.91 | 108.21 | 0.5913 | 671.6 | 424.1 | |
| 0.90 | 4.77 | 0.55 | 2.93 | -11.74 | 81.17 | -35.17 | 107.59 | 0.5937 | 894.1 | 726.1 | |
| 0.99 | 2.34 | 0.61 | 1.44 | -11.65 | 80.96 | -35.38 | 107.35 | 0.5963 | 732.6 | 637.6 | |
| 1.53 | 2.61 | 0.95 | 1.62 | -11.73 | 80.64 | -35.70 | 107.37 | 0.6008 | 602.9 | 472.8 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -10.53 | 80.66 | -35.68 | 105.41 | 0.5970 | 656.0 | 510.1 | |
| 0.63 | 1.62 | 0.39 | 1.01 | -11.85 | 80.35 | -35.98 | 107.46 | 0.6050 | 737.4 | 611.4 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -12.31 | 80.09 | -36.25 | 108.10 | 0.6100 | 452.0 | 338.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -12.00 | 80.02 | -36.32 | 107.58 | 0.6099 | 573.0 | 402.9 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -12.37 | 79.81 | -36.53 | 108.09 | 0.6139 | -236.0 | -291.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -12.21 | 79.64 | -36.70 | 107.77 | 0.6156 | 398.0 | 232.2 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -12.42 | 79.45 | -36.89 | 108.04 | 0.6188 | -740.0 | -599.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -10.60 | 79.34 | -36.99 | 105.11 | 0.6149 | -782.0 | -556.9 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -11.64 | 78.99 | -37.35 | 106.65 | 0.6224 | -753.0 | -595.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -10.90 | 79.11 | -37.23 | 105.52 | 0.6188 | -694.0 | -559.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -11.24 | 79.05 | -37.28 | 106.04 | 0.6204 | -648.0 | -468.5 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -12.56 | 78.68 | -37.66 | 107.99 | 0.6292 | -604.0 | -475.5 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -9.55 | 79.14 | -37.20 | 103.36 | 0.6150 | -607.0 | -515.5 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -11.29 | 78.58 | -37.76 | 105.97 | 0.6269 | -797.0 | -642.1 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -11.08 | 78.57 | -37.77 | 105.63 | 0.6264 | -881.0 | -716.9 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -10.71 | 78.63 | -37.71 | 105.07 | 0.6247 | -159.0 | -143.8 | |
| 8.56 | 85.02 | 5.48 | 54.78 | -11.00 | 77.76 | -38.58 | 105.27 | 0.6368 | -1087.0 | -412.1 | |
| 0.00 | 1.98 | 0.00 | 1.29 | -12.72 | 77.14 | -39.20 | 107.70 | 0.6494 | -749.0 | -643.0 | |
| 1.17 | 2.88 | 0.76 | 1.87 | -12.44 | 77.07 | -39.27 | 107.26 | 0.6495 | -823.2 | -670.9 | |
| 4.50 | -31.00 | 2.91 | -31.00 | -11.21 | 77.24 | -39.09 | 105.43 | 0.6440 | -1038.1 | 999999 | |
| 0.99 | -31.00 | 0.64 | -31.00 | -11.36 | 76.98 | -39.36 | 105.59 | 0.6478 | -640.5 | 999999 | |
| 21.71 | 63.23 | 14.22 | 41.53 | -12.12 | 76.44 | -39.90 | 106.58 | 0.6566 | -909.4 | -182.3 | |
| 0.00 | 1.98 | 0.00 | 1.28 | -8.65 | 76.82 | -39.52 | 101.39 | 0.6440 | -600.0 | -501.2 | |
| 0.00 | 1.53 | 0.00 | 1.03 | -12.77 | 75.09 | -41.25 | 107.14 | 0.6752 | -565.0 | -407.8 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -12.89 | 74.77 | -41.57 | 107.22 | 0.6794 | -576.0 | -504.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
