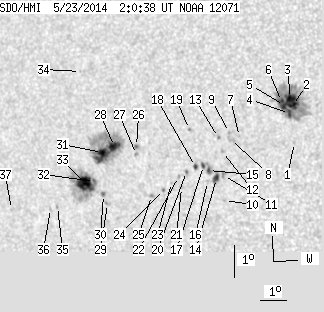

SDO HMI 2014-05-23 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.14 | 282.99 | 38.53 | 175.90 | -11.08 | 79.75 | -36.03 | 106.23 | 0.6024 | -24.1 | -21.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.63 | -11.00 | 84.54 | -31.25 | 107.96 | 0.5374 | 434.0 | 344.7 | |
| 5.76 | 84.49 | 3.37 | 49.38 | -9.87 | 84.59 | -31.19 | 105.91 | 0.5327 | 1239.7 | 497.4 | |
| 7.12 | -2.00 | 4.16 | -2.00 | -9.65 | 84.54 | -31.24 | 105.49 | 0.5327 | 1153.3 | 999999 | |
| 2.43 | -2.00 | 1.42 | -2.00 | -10.11 | 84.46 | -31.33 | 106.30 | 0.5354 | 854.4 | 999999 | |
| 3.51 | -2.00 | 2.06 | -2.00 | -9.86 | 84.30 | -31.48 | 105.78 | 0.5367 | 821.6 | 999999 | |
| 3.15 | -2.00 | 1.85 | -2.00 | -9.74 | 84.21 | -31.58 | 105.52 | 0.5377 | 727.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -10.79 | 82.55 | -33.24 | 106.73 | 0.5644 | 696.0 | 581.0 | |
| 0.00 | 3.78 | 0.00 | 2.28 | -10.87 | 82.20 | -33.58 | 106.74 | 0.5694 | 643.0 | 555.1 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -10.66 | 82.20 | -33.59 | 106.37 | 0.5688 | 827.0 | 693.3 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -12.75 | 81.71 | -34.07 | 109.71 | 0.5826 | 588.0 | 455.2 | |
| 0.00 | 2.52 | 0.00 | 1.53 | -11.98 | 81.79 | -33.99 | 108.45 | 0.5788 | 844.0 | 731.6 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -11.24 | 81.86 | -33.93 | 107.23 | 0.5753 | 726.0 | 543.6 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -10.80 | 81.77 | -34.02 | 106.46 | 0.5752 | 886.0 | 777.2 | |
| 3.33 | 7.03 | 2.03 | 4.28 | -12.06 | 81.52 | -34.27 | 108.48 | 0.5828 | 727.0 | 477.1 | |
| 1.44 | 8.65 | 0.88 | 5.28 | -11.81 | 81.25 | -34.53 | 107.96 | 0.5855 | 837.9 | 654.5 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -12.15 | 81.16 | -34.62 | 108.48 | 0.5878 | 408.0 | 262.4 | |
| 1.26 | -15.00 | 0.77 | -15.00 | -11.65 | 81.09 | -34.70 | 107.63 | 0.5872 | 685.8 | 999999 | |
| 1.17 | 2.43 | 0.72 | 1.49 | -11.68 | 80.78 | -35.01 | 107.55 | 0.5914 | 637.5 | 496.5 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -10.54 | 80.71 | -35.07 | 105.63 | 0.5888 | 662.0 | 476.9 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -11.83 | 80.41 | -35.37 | 107.66 | 0.5968 | 615.0 | 502.0 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -12.32 | 80.15 | -35.64 | 108.35 | 0.6020 | 166.0 | 217.1 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -11.98 | 80.09 | -35.70 | 107.78 | 0.6017 | 645.0 | 474.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -12.16 | 79.79 | -36.00 | 107.96 | 0.6062 | 395.0 | 309.0 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -12.37 | 79.45 | -36.34 | 108.16 | 0.6114 | -636.0 | -561.2 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -12.54 | 78.95 | -36.83 | 108.26 | 0.6185 | -842.0 | -715.5 | |
| 0.63 | 1.80 | 0.40 | 1.13 | -11.02 | 78.61 | -37.18 | 105.73 | 0.6184 | -842.7 | -692.5 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -11.27 | 78.57 | -37.21 | 106.11 | 0.6196 | -806.0 | -627.3 | |
| 7.39 | 85.21 | 4.70 | 54.48 | -11.01 | 77.75 | -38.03 | 105.44 | 0.6297 | -1109.0 | -441.7 | |
| 0.00 | 2.16 | 0.00 | 1.39 | -12.76 | 77.18 | -38.61 | 107.96 | 0.6420 | -589.0 | -629.4 | |
| 0.81 | 1.80 | 0.52 | 1.16 | -12.48 | 77.07 | -38.72 | 107.50 | 0.6426 | -887.4 | -763.7 | |
| 4.77 | -28.00 | 3.06 | -28.00 | -11.18 | 77.25 | -38.54 | 105.57 | 0.6367 | -980.3 | 999999 | |
| 1.17 | 59.99 | 0.76 | 39.10 | -12.07 | 76.78 | -39.00 | 106.78 | 0.6451 | -1016.6 | -227.8 | |
| 18.20 | -32.00 | 11.83 | -32.00 | -12.12 | 76.41 | -39.37 | 106.75 | 0.6500 | -933.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -8.68 | 76.74 | -39.05 | 101.55 | 0.6379 | -552.0 | -510.6 | |
| 0.00 | 1.44 | 0.00 | 0.96 | -12.81 | 75.14 | -40.64 | 107.39 | 0.6678 | -215.0 | -325.5 | |
| 0.00 | 1.44 | 0.00 | 0.96 | -12.86 | 74.84 | -40.94 | 107.38 | 0.6717 | -545.0 | -413.4 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -12.86 | 73.21 | -42.58 | 106.90 | 0.6917 | -593.0 | -601.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
