SDO HMI 2014-05-23 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.64 | 133.76 | 22.89 | 105.98 | -10.87 | 65.01 | -50.78 | 102.55 | 0.7806 | 538.5 | 218.9 | |
|
previous
or next observation for the same group /

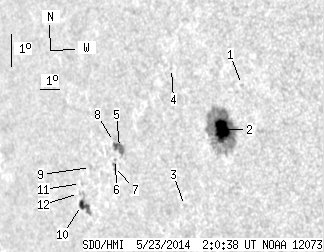

back to the solar disc SDO HMI 2014-05-23 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.87 | -9.20 | 67.85 | -47.94 | 100.77 | 0.7483 | -362.0 | -290.4 | |
| 20.18 | 100.80 | 15.41 | 77.07 | -10.55 | 66.69 | -49.10 | 102.39 | 0.7631 | 978.1 | 332.3 | |
| 0.00 | 1.26 | 0.00 | 1.02 | -12.85 | 64.25 | -51.54 | 104.93 | 0.7923 | 407.0 | 327.4 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -8.63 | 64.62 | -51.17 | 99.65 | 0.7835 | -375.0 | -352.4 | |
| 5.22 | 10.00 | 4.49 | 8.58 | -10.98 | 61.41 | -54.38 | 102.22 | 0.8186 | 696.4 | 480.4 | |
| 0.00 | 0.81 | 0.00 | 0.70 | -11.34 | 61.09 | -54.69 | 102.62 | 0.8221 | 399.0 | 341.9 | |
| 0.00 | 2.43 | 0.00 | 2.11 | -11.56 | 60.98 | -54.81 | 102.87 | 0.8234 | 423.0 | 239.6 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -10.79 | 61.14 | -54.64 | 101.96 | 0.8211 | 447.0 | 389.8 | |
| 0.00 | 1.62 | 0.00 | 1.45 | -11.56 | 59.66 | -56.13 | 102.71 | 0.8360 | -312.0 | -264.4 | |
| 3.24 | 12.25 | 2.99 | 11.23 | -12.71 | 58.76 | -57.02 | 103.97 | 0.8454 | -428.6 | -528.4 | |
| 0.00 | 0.63 | 0.00 | 0.58 | -12.03 | 58.94 | -56.85 | 103.19 | 0.8431 | -234.0 | -339.3 | |
| 0.00 | 0.72 | 0.00 | 0.66 | -12.34 | 58.72 | -57.06 | 103.53 | 0.8454 | -138.0 | -194.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
