SDO HMI 2014-05-23 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.17 | 0.00 | 51.87 | -18.18 | 198.74 | 84.05 | 251.90 | 0.9944 | 18.8 | -26.9 | |
|
previous
or next observation for the same group /

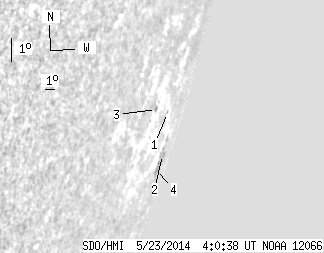

back to the solar disc SDO HMI 2014-05-23 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 3.34 | -16.85 | 197.20 | 82.52 | 253.23 | 0.9917 | 86.0 | 124.0 | |
| 0.00 | 3.60 | 0.00 | 18.70 | -18.13 | 199.44 | 84.75 | 251.96 | 0.9958 | -51.0 | -20.7 | |
| 0.00 | 1.53 | 0.00 | 4.33 | -16.82 | 194.77 | 80.08 | 253.22 | 0.9856 | -27.0 | -124.3 | |
| 0.00 | 5.14 | 0.00 | 25.50 | -18.62 | 199.10 | 84.41 | 251.46 | 0.9952 | 67.0 | -34.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
