SDO HMI 2014-05-23 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.65 | 288.80 | 41.93 | 177.25 | -11.15 | 79.68 | -35.01 | 106.72 | 0.5887 | -93.0 | -24.2 | |
|
previous
or next observation for the same group /

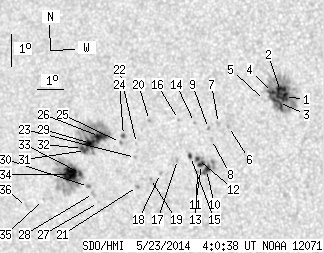

back to the solar disc SDO HMI 2014-05-23 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.41 | 85.32 | 3.12 | 49.30 | -9.87 | 84.71 | -29.98 | 106.46 | 0.5153 | 1265.8 | 474.1 | |
| 8.92 | -1.00 | 5.15 | -1.00 | -9.72 | 84.58 | -30.11 | 106.11 | 0.5166 | 1107.2 | 999999 | |
| 5.14 | -1.00 | 2.97 | -1.00 | -10.05 | 84.47 | -30.21 | 106.70 | 0.5193 | 808.8 | 999999 | |
| 3.42 | -1.00 | 1.98 | -1.00 | -9.74 | 84.29 | -30.39 | 106.03 | 0.5209 | 758.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -9.98 | 83.98 | -30.71 | 106.35 | 0.5262 | 375.0 | 319.2 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -10.76 | 82.59 | -32.10 | 107.17 | 0.5485 | 705.0 | 648.5 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -10.66 | 82.23 | -32.45 | 106.85 | 0.5531 | 882.0 | 624.6 | |
| 0.00 | 1.80 | 0.00 | 1.07 | -11.15 | 81.92 | -32.77 | 107.57 | 0.5592 | 747.0 | 577.3 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -10.81 | 81.85 | -32.84 | 106.95 | 0.5590 | 867.0 | 698.7 | |
| 4.05 | 19.19 | 2.43 | 11.52 | -12.07 | 81.61 | -33.08 | 109.03 | 0.5668 | 771.1 | 692.8 | |
| 2.70 | -10.00 | 1.62 | -10.00 | -11.91 | 81.44 | -33.24 | 108.69 | 0.5684 | 895.2 | 999999 | |
| 1.44 | -10.00 | 0.87 | -10.00 | -11.76 | 81.32 | -33.37 | 108.37 | 0.5696 | 830.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -12.13 | 81.26 | -33.42 | 108.97 | 0.5716 | 352.0 | 277.6 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -10.62 | 81.35 | -33.33 | 106.42 | 0.5652 | 561.0 | 431.7 | |
| 1.35 | 3.06 | 0.82 | 1.85 | -11.66 | 81.07 | -33.62 | 108.10 | 0.5726 | 520.3 | 460.4 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -10.51 | 80.77 | -33.91 | 106.03 | 0.5729 | 452.0 | 422.2 | |
| 0.00 | 1.89 | 0.00 | 1.15 | -11.74 | 80.57 | -34.12 | 108.03 | 0.5797 | 454.0 | 440.5 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -12.16 | 79.87 | -34.82 | 108.45 | 0.5906 | 493.0 | 323.5 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -12.31 | 79.46 | -35.22 | 108.53 | 0.5965 | -572.0 | -452.2 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -10.53 | 79.68 | -35.00 | 105.66 | 0.5879 | -793.0 | -625.6 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -12.55 | 78.93 | -35.76 | 108.70 | 0.6044 | -870.0 | -744.9 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -11.22 | 79.09 | -35.59 | 106.61 | 0.5979 | -530.0 | -542.0 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -11.65 | 78.99 | -35.69 | 107.27 | 0.6006 | -739.0 | -609.8 | |
| 0.99 | 1.98 | 0.61 | 1.23 | -10.97 | 78.63 | -36.05 | 106.03 | 0.6034 | -846.0 | -686.8 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -11.18 | 78.49 | -36.20 | 106.33 | 0.6060 | -695.0 | -541.2 | |
| 8.20 | 78.29 | 5.14 | 49.33 | -10.98 | 77.71 | -36.98 | 105.75 | 0.6158 | -1104.2 | -405.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -13.02 | 77.33 | -37.35 | 108.83 | 0.6268 | -552.0 | -418.7 | |
| 0.00 | 2.88 | 0.00 | 1.83 | -12.73 | 77.19 | -37.50 | 108.34 | 0.6278 | -529.0 | -541.4 | |
| 6.58 | -26.00 | 4.15 | -26.00 | -11.19 | 77.32 | -37.36 | 105.96 | 0.6214 | -996.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.15 | -12.51 | 77.03 | -37.66 | 107.94 | 0.6291 | -912.0 | -776.8 | |
| 2.16 | -26.00 | 1.37 | -26.00 | -11.40 | 77.10 | -37.59 | 106.22 | 0.6250 | -716.4 | 999999 | |
| 1.71 | -26.00 | 1.08 | -26.00 | -11.34 | 76.99 | -37.70 | 106.09 | 0.6263 | -627.5 | 999999 | |
| 1.71 | 70.54 | 1.09 | 45.29 | -12.11 | 76.78 | -37.90 | 107.22 | 0.6311 | -997.3 | -251.4 | |
| 14.87 | -33.00 | 9.53 | -33.00 | -12.13 | 76.38 | -38.30 | 107.12 | 0.6363 | -989.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -12.88 | 75.17 | -39.52 | 107.87 | 0.6541 | -463.0 | -360.1 | |
| 0.00 | 2.34 | 0.00 | 1.55 | -13.08 | 74.43 | -40.25 | 107.93 | 0.6638 | -616.0 | -398.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
