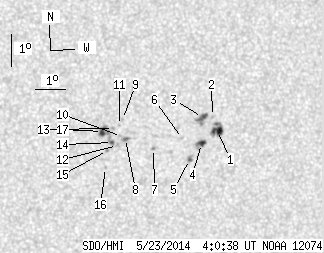

SDO HMI 2014-05-23 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.64 | 60.79 | 10.16 | 33.00 | -13.63 | 135.85 | 21.16 | 239.23 | 0.4098 | -36.4 | 39.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.58 | 13.24 | 3.61 | 7.27 | -13.48 | 137.54 | 22.85 | 241.41 | 0.4319 | 913.4 | 770.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -13.05 | 137.33 | 22.64 | 242.12 | 0.4261 | 821.0 | 700.0 | |
| 3.33 | 9.10 | 1.82 | 4.97 | -13.09 | 137.00 | 22.31 | 241.72 | 0.4216 | 1162.1 | 849.6 | |
| 3.15 | 6.58 | 1.73 | 3.60 | -13.89 | 137.04 | 22.35 | 240.06 | 0.4279 | 929.6 | 758.5 | |
| 0.90 | 3.69 | 0.49 | 2.02 | -14.39 | 136.69 | 22.00 | 238.64 | 0.4267 | 927.5 | 698.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -13.74 | 136.38 | 21.70 | 239.68 | 0.4178 | 579.0 | 373.7 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.06 | 135.44 | 20.76 | 237.94 | 0.4073 | -876.0 | -582.1 | |
| 0.54 | 3.15 | 0.29 | 1.70 | -13.76 | 134.48 | 19.79 | 237.45 | 0.3919 | -825.7 | -567.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.17 | 134.33 | 19.64 | 238.59 | 0.3852 | -831.0 | -606.6 | |
| 0.00 | 2.25 | 0.00 | 1.21 | -13.70 | 134.34 | 19.66 | 237.41 | 0.3895 | -672.0 | -339.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.36 | 134.25 | 19.56 | 238.06 | 0.3855 | -768.0 | -554.2 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -13.98 | 134.23 | 19.55 | 236.65 | 0.3903 | -769.0 | -516.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -13.45 | 134.06 | 19.37 | 237.61 | 0.3836 | -765.0 | -598.1 | |
| 0.81 | 12.61 | 0.44 | 6.76 | -13.89 | 134.06 | 19.37 | 236.63 | 0.3872 | -921.9 | -801.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -14.14 | 133.92 | 19.23 | 235.89 | 0.3874 | -930.0 | -694.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -14.67 | 133.90 | 19.21 | 234.71 | 0.3916 | -728.0 | -539.1 | |
| 3.33 | -14.00 | 1.78 | -14.00 | -13.55 | 133.70 | 19.01 | 236.93 | 0.3796 | -1075.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
