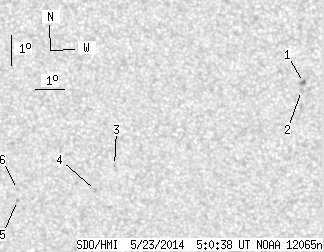

SDO HMI 2014-05-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 8.64 | 0.24 | 4.80 | -26.26 | 104.61 | -9.52 | 161.18 | 0.4453 | -160.0 | -26.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 2.52 | 0.24 | 1.36 | -24.39 | 108.98 | -5.15 | 168.01 | 0.3956 | 922.4 | 769.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -24.65 | 108.91 | -5.23 | 167.99 | 0.4000 | 794.0 | 636.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -27.12 | 102.34 | -11.80 | 157.02 | 0.4681 | -767.0 | -588.4 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -27.96 | 101.58 | -12.56 | 156.53 | 0.4843 | -752.0 | -601.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -28.27 | 98.77 | -15.37 | 152.46 | 0.5070 | -724.0 | -657.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -27.90 | 98.82 | -15.32 | 152.15 | 0.5018 | -693.0 | -553.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
