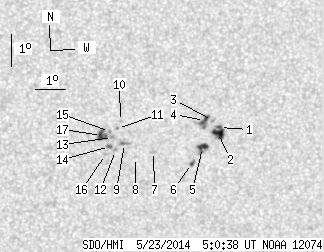

SDO HMI 2014-05-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.06 | 62.15 | 13.16 | 33.90 | -13.60 | 136.05 | 21.91 | 240.10 | 0.4198 | 5.5 | 89.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 13.70 | 0.45 | 7.55 | -13.28 | 137.62 | 23.49 | 242.42 | 0.4394 | 908.7 | 755.7 | |
| 7.48 | -1.00 | 4.12 | -1.00 | -13.47 | 137.61 | 23.47 | 242.02 | 0.4404 | 961.7 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -13.07 | 137.36 | 23.23 | 242.63 | 0.4344 | 745.0 | 564.8 | |
| 3.42 | 9.55 | 1.88 | 5.24 | -13.07 | 137.09 | 22.95 | 242.37 | 0.4306 | 1139.1 | 830.4 | |
| 4.96 | 9.64 | 2.73 | 5.30 | -13.91 | 137.11 | 22.97 | 240.63 | 0.4365 | 972.3 | 667.1 | |
| 1.08 | 2.61 | 0.59 | 1.44 | -14.41 | 136.79 | 22.65 | 239.28 | 0.4357 | 808.8 | 638.7 | |
| 0.00 | 2.70 | 0.00 | 1.47 | -14.05 | 135.47 | 21.33 | 238.61 | 0.4151 | -560.0 | -361.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -14.24 | 134.88 | 20.74 | 237.53 | 0.4086 | -563.0 | -430.7 | |
| 0.00 | 3.15 | 0.00 | 1.70 | -13.81 | 134.47 | 20.34 | 237.98 | 0.3997 | -797.0 | -558.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.13 | 134.28 | 20.14 | 239.27 | 0.3918 | -808.0 | -646.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.35 | 134.20 | 20.06 | 238.69 | 0.3923 | -770.0 | -678.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -14.03 | 134.19 | 20.06 | 237.16 | 0.3976 | -723.0 | -597.9 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -13.63 | 134.06 | 19.92 | 237.89 | 0.3926 | -619.0 | -289.2 | |
| 0.90 | 2.43 | 0.49 | 1.31 | -13.91 | 133.98 | 19.84 | 237.17 | 0.3938 | -969.7 | -801.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.44 | 133.94 | 19.80 | 238.16 | 0.3896 | -771.0 | -610.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -14.16 | 133.87 | 19.73 | 236.49 | 0.3944 | -948.0 | -795.0 | |
| 5.41 | 8.74 | 2.90 | 4.69 | -13.57 | 133.69 | 19.55 | 237.56 | 0.3871 | -1088.1 | -835.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
