SDO HMI 2014-05-23 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.01 | 97.51 | 11.46 | 61.48 | -18.49 | 148.54 | 34.95 | 241.56 | 0.6198 | 461.1 | 386.7 | |
|
previous
or next observation for the same group /

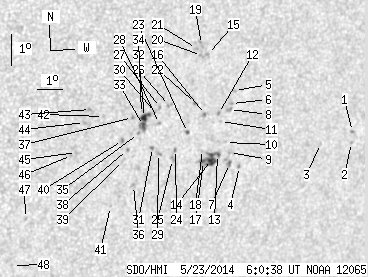

back to the solar disc SDO HMI 2014-05-23 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.94 | -18.28 | 155.53 | 41.94 | 245.28 | 0.7010 | 700.0 | 627.9 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -18.63 | 155.59 | 42.00 | 244.83 | 0.7029 | 566.0 | 504.5 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -18.68 | 154.28 | 40.69 | 244.20 | 0.6883 | -356.0 | -390.6 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -19.47 | 151.14 | 37.55 | 241.60 | 0.6554 | 572.0 | 494.1 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -17.07 | 150.34 | 36.75 | 244.70 | 0.6348 | 683.0 | 543.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -17.48 | 150.31 | 36.72 | 244.08 | 0.6364 | 739.0 | 671.9 | |
| 0.90 | 3.42 | 0.59 | 2.22 | -19.38 | 150.71 | 37.12 | 241.51 | 0.6500 | 715.4 | 614.5 | |
| 0.00 | 2.61 | 0.00 | 1.67 | -17.67 | 150.28 | 36.69 | 243.78 | 0.6368 | 644.0 | 591.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -19.03 | 150.62 | 37.03 | 241.96 | 0.6472 | 711.0 | 618.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -18.72 | 150.37 | 36.78 | 242.29 | 0.6429 | 560.0 | 470.4 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -18.06 | 150.01 | 36.42 | 243.07 | 0.6354 | 607.0 | 513.0 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -17.80 | 149.87 | 36.28 | 243.37 | 0.6325 | 832.0 | 736.3 | |
| 1.35 | 20.72 | 0.87 | 13.32 | -19.10 | 150.15 | 36.56 | 241.61 | 0.6421 | 787.3 | 619.2 | |
| 8.29 | -13.00 | 5.33 | -13.00 | -19.27 | 149.95 | 36.36 | 241.26 | 0.6406 | 841.1 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.13 | -15.96 | 149.04 | 35.45 | 245.75 | 0.6138 | 694.0 | 595.5 | |
| 0.00 | 1.35 | 0.00 | 0.86 | -17.84 | 149.37 | 35.78 | 243.05 | 0.6266 | 919.0 | 774.6 | |
| 1.35 | -13.00 | 0.87 | -13.00 | -19.33 | 149.65 | 36.06 | 241.00 | 0.6374 | 881.4 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -18.95 | 149.51 | 35.93 | 241.48 | 0.6338 | 163.0 | 201.2 | |
| 0.00 | 2.70 | 0.00 | 1.68 | -15.65 | 148.74 | 35.15 | 246.08 | 0.6087 | 615.0 | 609.5 | |
| 0.00 | 1.80 | 0.00 | 1.13 | -15.99 | 148.81 | 35.22 | 245.58 | 0.6111 | 728.0 | 612.1 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -15.78 | 148.57 | 34.98 | 245.80 | 0.6071 | 830.0 | 737.7 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -17.50 | 148.90 | 35.31 | 243.31 | 0.6192 | -744.0 | -524.5 | |
| 0.63 | 1.80 | 0.40 | 1.14 | -18.42 | 148.79 | 35.20 | 241.86 | 0.6225 | 875.9 | 720.3 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -18.97 | 148.45 | 34.86 | 240.85 | 0.6212 | -589.0 | -298.3 | |
| 0.00 | 2.52 | 0.00 | 1.59 | -19.29 | 148.41 | 34.82 | 240.35 | 0.6224 | 741.0 | 617.3 | |
| 0.00 | 2.34 | 0.00 | 1.46 | -17.58 | 147.90 | 34.31 | 242.63 | 0.6074 | -767.0 | -528.2 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -17.65 | 147.57 | 33.98 | 242.33 | 0.6036 | -658.0 | -481.3 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -18.16 | 147.64 | 34.05 | 241.60 | 0.6071 | -558.0 | -408.7 | |
| 0.00 | 1.89 | 0.00 | 1.19 | -19.11 | 147.82 | 34.23 | 240.26 | 0.6144 | 725.0 | 517.1 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -17.81 | 147.41 | 33.82 | 241.99 | 0.6025 | -517.0 | -429.7 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -18.92 | 147.54 | 33.96 | 240.38 | 0.6100 | 820.0 | 717.5 | |
| 3.33 | 12.89 | 2.06 | 7.96 | -17.97 | 147.03 | 33.44 | 241.50 | 0.5986 | -653.0 | -380.3 | |
| 2.16 | -32.00 | 1.34 | -32.00 | -18.23 | 147.04 | 33.45 | 241.12 | 0.6001 | -454.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -17.85 | 146.89 | 33.30 | 241.61 | 0.5962 | 71.0 | 159.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -18.48 | 146.91 | 33.32 | 240.64 | 0.5999 | 750.0 | 566.0 | |
| 0.00 | 2.34 | 0.00 | 1.46 | -20.14 | 147.10 | 33.51 | 238.26 | 0.6116 | 793.0 | 576.3 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -17.98 | 146.57 | 32.98 | 241.21 | 0.5930 | 673.0 | 585.1 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -19.00 | 146.60 | 33.01 | 239.66 | 0.5990 | 671.0 | 597.6 | |
| 0.00 | 1.98 | 0.00 | 1.23 | -19.35 | 146.52 | 32.93 | 239.08 | 0.6002 | 721.0 | 589.6 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -18.71 | 146.34 | 32.75 | 239.93 | 0.5943 | 791.0 | 662.2 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -20.83 | 146.37 | 32.78 | 236.76 | 0.6073 | 609.0 | 535.6 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -17.96 | 145.47 | 31.88 | 240.52 | 0.5792 | 718.0 | 586.3 | |
| 0.00 | 2.07 | 0.00 | 1.25 | -17.75 | 144.94 | 31.35 | 240.51 | 0.5714 | 888.0 | 745.4 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -18.16 | 144.79 | 31.20 | 239.75 | 0.5720 | 856.0 | 741.1 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -19.12 | 144.69 | 31.10 | 238.16 | 0.5766 | 733.0 | 593.9 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -19.22 | 144.52 | 30.93 | 237.89 | 0.5752 | 837.0 | 695.9 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -21.26 | 143.23 | 29.64 | 233.75 | 0.5737 | 608.0 | 554.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -22.78 | 143.09 | 29.50 | 231.37 | 0.5834 | 641.0 | 548.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
