SDO HMI 2014-05-23 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.16 | 296.86 | 50.05 | 179.44 | -11.14 | 79.85 | -33.74 | 107.21 | 0.5715 | 20.6 | -25.7 | |
|
previous
or next observation for the same group /

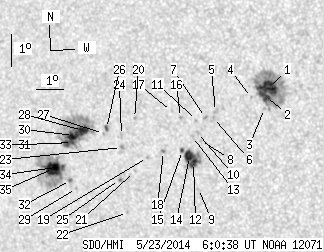

back to the solar disc SDO HMI 2014-05-23 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.64 | 87.04 | 11.22 | 49.70 | -9.78 | 84.65 | -28.94 | 106.78 | 0.5001 | 1116.3 | 452.7 | |
| 6.85 | -1.00 | 3.92 | -1.00 | -10.06 | 84.51 | -29.08 | 107.25 | 0.5030 | 851.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -10.42 | 84.44 | -29.15 | 107.93 | 0.5055 | 563.0 | 446.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -10.08 | 84.02 | -29.57 | 107.06 | 0.5103 | 372.0 | 291.1 | |
| 0.00 | 2.52 | 0.00 | 1.47 | -10.49 | 82.68 | -30.91 | 107.22 | 0.5308 | 350.0 | 296.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -10.67 | 82.59 | -31.00 | 107.51 | 0.5328 | 819.0 | 755.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -10.67 | 82.30 | -31.29 | 107.38 | 0.5368 | 934.0 | 779.0 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -11.37 | 82.04 | -31.55 | 108.52 | 0.5432 | 157.0 | 232.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -12.85 | 81.76 | -31.83 | 111.00 | 0.5528 | 277.0 | 400.3 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -11.12 | 81.96 | -31.63 | 108.05 | 0.5433 | 837.0 | 620.1 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -10.75 | 81.97 | -31.62 | 107.39 | 0.5419 | 731.0 | 679.7 | |
| 5.95 | 26.85 | 3.52 | 15.92 | -12.05 | 81.69 | -31.90 | 109.56 | 0.5505 | 804.3 | 503.4 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -11.24 | 81.76 | -31.83 | 108.17 | 0.5465 | 700.0 | 542.0 | |
| 8.29 | -12.00 | 4.91 | -12.00 | -11.86 | 81.57 | -32.02 | 109.17 | 0.5515 | 928.8 | 999999 | |
| 1.17 | -12.00 | 0.70 | -12.00 | -11.67 | 81.34 | -32.25 | 108.73 | 0.5539 | 583.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -10.65 | 81.39 | -32.20 | 106.96 | 0.5495 | 673.0 | 551.5 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -10.46 | 81.09 | -32.50 | 106.50 | 0.5532 | 480.0 | 302.6 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -11.69 | 80.64 | -32.95 | 108.45 | 0.5637 | 832.0 | 612.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -11.86 | 80.02 | -33.57 | 108.48 | 0.5728 | 672.0 | 588.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -10.65 | 79.70 | -33.89 | 106.30 | 0.5731 | -770.0 | -617.7 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -12.29 | 79.47 | -34.12 | 108.96 | 0.5817 | -662.0 | -415.2 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -13.55 | 79.00 | -34.59 | 110.84 | 0.5927 | 598.0 | 506.4 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -11.54 | 79.09 | -34.50 | 107.56 | 0.5843 | -807.0 | -735.1 | |
| 0.00 | 1.98 | 0.00 | 1.21 | -11.17 | 79.14 | -34.45 | 106.96 | 0.5824 | -671.0 | -592.5 | |
| 0.36 | 1.08 | 0.22 | 0.66 | -12.52 | 78.87 | -34.72 | 109.10 | 0.5906 | -847.5 | -737.4 | |
| 1.08 | 2.52 | 0.66 | 1.54 | -10.94 | 78.61 | -34.98 | 106.38 | 0.5889 | -786.3 | -634.5 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -11.09 | 78.47 | -35.12 | 106.59 | 0.5912 | -617.0 | -528.8 | |
| 8.38 | 77.94 | 5.18 | 48.39 | -10.99 | 77.69 | -35.90 | 106.14 | 0.6015 | -1105.7 | -408.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -12.77 | 77.18 | -36.41 | 108.82 | 0.6138 | -630.0 | -551.6 | |
| 8.83 | -28.00 | 5.49 | -28.00 | -11.14 | 77.32 | -36.27 | 106.25 | 0.6068 | -998.8 | 999999 | |
| 1.62 | -28.00 | 1.01 | -28.00 | -11.35 | 77.25 | -36.34 | 106.57 | 0.6084 | -867.3 | 999999 | |
| 0.72 | 75.24 | 0.45 | 47.60 | -12.52 | 76.99 | -36.60 | 108.35 | 0.6155 | -860.9 | -275.5 | |
| 3.78 | -28.00 | 2.36 | -28.00 | -11.38 | 77.01 | -36.58 | 106.54 | 0.6116 | -679.0 | 999999 | |
| 1.17 | -32.00 | 0.74 | -32.00 | -12.08 | 76.75 | -36.84 | 107.57 | 0.6172 | -1068.2 | 999999 | |
| 15.32 | -32.00 | 9.67 | -32.00 | -12.14 | 76.39 | -37.20 | 107.53 | 0.6221 | -1004.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
