SDO HMI 2014-05-23 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.59 | 64.58 | 14.09 | 35.41 | -13.65 | 136.07 | 22.48 | 240.56 | 0.4282 | 65.1 | -24.4 | |
|
previous
or next observation for the same group /

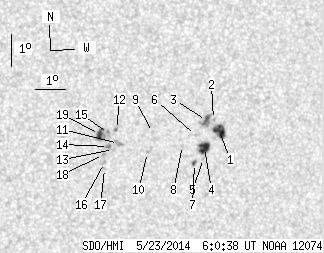

back to the solar disc SDO HMI 2014-05-23 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.37 | 13.07 | 5.19 | 7.24 | -13.42 | 137.67 | 24.08 | 242.65 | 0.4486 | 979.0 | 700.6 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -13.06 | 137.42 | 23.83 | 243.19 | 0.4429 | 661.0 | 602.7 | |
| 2.52 | 9.37 | 1.39 | 5.16 | -13.09 | 137.19 | 23.60 | 242.91 | 0.4398 | 1203.0 | 870.3 | |
| 8.20 | 10.72 | 4.53 | 5.93 | -13.93 | 137.21 | 23.62 | 241.20 | 0.4456 | 934.6 | 651.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -14.27 | 137.21 | 23.62 | 240.51 | 0.4480 | 418.0 | 326.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -13.56 | 136.86 | 23.27 | 241.63 | 0.4383 | 208.0 | 136.0 | |
| 0.99 | 2.61 | 0.55 | 1.44 | -14.43 | 136.92 | 23.33 | 239.91 | 0.4451 | 789.1 | 664.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -13.87 | 136.45 | 22.86 | 240.58 | 0.4348 | -378.0 | -144.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.48 | 135.40 | 21.81 | 240.34 | 0.4175 | -708.0 | -566.6 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.10 | 135.29 | 21.70 | 238.90 | 0.4206 | -653.0 | -425.1 | |
| 0.00 | 4.05 | 0.00 | 2.20 | -13.83 | 134.29 | 20.70 | 238.35 | 0.4049 | -729.0 | -531.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -13.40 | 134.19 | 20.60 | 239.18 | 0.4002 | -796.0 | -650.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -14.02 | 134.14 | 20.55 | 237.77 | 0.4044 | -606.0 | -534.0 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -13.93 | 133.97 | 20.38 | 237.76 | 0.4013 | -1033.0 | -859.5 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -13.52 | 133.93 | 20.34 | 238.61 | 0.3976 | -748.0 | -677.2 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -14.43 | 133.88 | 20.29 | 236.58 | 0.4041 | -848.0 | -678.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.61 | 133.90 | 20.31 | 236.20 | 0.4058 | -704.0 | -499.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.18 | 133.82 | 20.23 | 237.05 | 0.4013 | -1014.0 | -787.9 | |
| 4.51 | 8.29 | 2.43 | 4.47 | -13.56 | 133.63 | 20.04 | 238.18 | 0.3938 | -1095.9 | -858.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
