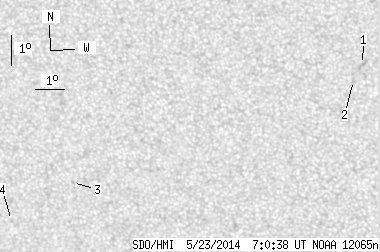

SDO HMI 2014-05-23 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.20 | 0.00 | 4.49 | -25.68 | 105.94 | -7.10 | 165.88 | 0.4267 | 71.0 | 348.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.33 | 0.00 | 2.33 | -24.38 | 108.99 | -4.05 | 170.51 | 0.3923 | 940.0 | 688.6 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -24.91 | 108.67 | -4.37 | 170.04 | 0.4015 | 728.0 | 573.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -28.27 | 98.70 | -14.34 | 154.02 | 0.5001 | -767.0 | -611.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -29.55 | 96.30 | -16.74 | 151.83 | 0.5328 | -617.0 | -491.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
