SDO HMI 2014-05-23 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.80 | 302.73 | 50.77 | 182.11 | -11.16 | 79.71 | -33.33 | 107.44 | 0.5660 | 0.6 | -44.7 | |
|
previous
or next observation for the same group /

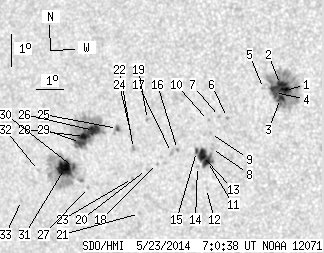

back to the solar disc SDO HMI 2014-05-23 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.55 | 91.01 | 5.42 | 51.68 | -9.88 | 84.76 | -28.29 | 107.30 | 0.4909 | 1215.0 | 444.7 | |
| 6.76 | -1.00 | 3.84 | -1.00 | -9.69 | 84.63 | -28.41 | 106.87 | 0.4920 | 1055.4 | 999999 | |
| 4.78 | -1.00 | 2.72 | -1.00 | -10.12 | 84.59 | -28.45 | 107.70 | 0.4943 | 880.0 | 999999 | |
| 5.05 | -1.00 | 2.88 | -1.00 | -9.93 | 84.40 | -28.64 | 107.23 | 0.4963 | 761.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -9.80 | 84.02 | -29.02 | 106.80 | 0.5013 | 390.0 | 301.5 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -10.67 | 82.65 | -30.39 | 107.81 | 0.5242 | 789.0 | 695.1 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -10.64 | 82.37 | -30.67 | 107.61 | 0.5281 | 880.0 | 784.4 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -11.62 | 81.96 | -31.08 | 109.20 | 0.5375 | 601.0 | 525.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -11.16 | 81.98 | -31.06 | 108.38 | 0.5354 | 799.0 | 622.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -10.76 | 81.96 | -31.08 | 107.64 | 0.5343 | 923.0 | 696.9 | |
| 6.31 | 21.54 | 3.71 | 12.68 | -12.02 | 81.77 | -31.28 | 109.82 | 0.5418 | 899.9 | 609.3 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -12.85 | 81.62 | -31.43 | 111.22 | 0.5474 | 663.0 | 465.9 | |
| 7.75 | -11.00 | 4.56 | -11.00 | -11.83 | 81.61 | -31.43 | 109.41 | 0.5433 | 947.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -12.17 | 81.38 | -31.66 | 109.89 | 0.5477 | 285.0 | 125.1 | |
| 1.53 | -11.00 | 0.90 | -11.00 | -11.70 | 81.41 | -31.63 | 109.09 | 0.5456 | 652.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -11.63 | 80.72 | -32.32 | 108.64 | 0.5548 | 768.0 | 593.4 | |
| 0.00 | 2.79 | 0.00 | 1.66 | -11.72 | 80.49 | -32.55 | 108.69 | 0.5583 | 623.0 | 498.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -12.05 | 79.93 | -33.12 | 109.01 | 0.5673 | 441.0 | 330.0 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -10.69 | 79.74 | -33.31 | 106.59 | 0.5652 | -680.0 | -585.9 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -12.23 | 79.49 | -33.55 | 109.12 | 0.5738 | -603.0 | -379.7 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -13.58 | 79.02 | -34.03 | 111.16 | 0.5854 | 617.0 | 409.1 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -11.57 | 79.10 | -33.94 | 107.84 | 0.5769 | -796.0 | -694.6 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -12.50 | 78.93 | -34.12 | 109.32 | 0.5825 | -735.0 | -689.1 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -11.17 | 79.08 | -33.96 | 107.16 | 0.5758 | -782.0 | -597.5 | |
| 1.08 | 4.05 | 0.66 | 2.47 | -10.95 | 78.58 | -34.46 | 106.59 | 0.5818 | -858.0 | -613.8 | |
| 9.37 | 79.02 | 5.76 | 48.75 | -10.99 | 77.67 | -35.37 | 106.33 | 0.5944 | -1072.7 | -386.8 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -12.74 | 77.21 | -35.83 | 109.01 | 0.6061 | -648.0 | -517.6 | |
| 9.10 | -26.00 | 5.62 | -26.00 | -11.17 | 77.30 | -35.74 | 106.50 | 0.5999 | -970.0 | 999999 | |
| 5.59 | -26.00 | 3.46 | -26.00 | -11.35 | 77.12 | -35.92 | 106.73 | 0.6028 | -745.7 | 999999 | |
| 1.53 | 81.91 | 0.96 | 51.43 | -12.12 | 76.74 | -36.31 | 107.82 | 0.6103 | -984.0 | -291.0 | |
| 16.40 | -30.00 | 10.28 | -30.00 | -12.14 | 76.38 | -36.66 | 107.73 | 0.6151 | -1010.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -12.18 | 75.36 | -37.68 | 107.44 | 0.6286 | -481.0 | -273.2 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -13.10 | 74.52 | -38.52 | 108.56 | 0.6421 | -372.0 | -345.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
