SDO HMI 2014-05-23 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.27 | 108.60 | 12.49 | 69.45 | -18.52 | 148.57 | 36.08 | 242.12 | 0.6334 | 509.8 | 433.2 | |
|
previous
or next observation for the same group /

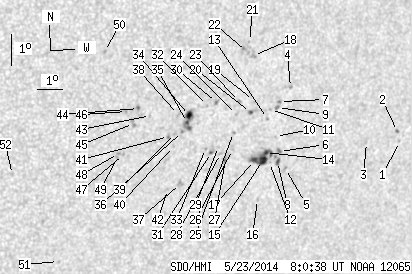

back to the solar disc SDO HMI 2014-05-23 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.70 | -18.62 | 155.80 | 43.31 | 245.33 | 0.7176 | 474.0 | 471.2 | |
| 0.45 | 1.26 | 0.32 | 0.89 | -18.31 | 155.62 | 43.12 | 245.68 | 0.7144 | 706.8 | 600.4 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -18.68 | 154.38 | 41.89 | 244.69 | 0.7019 | -596.0 | -498.2 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -17.00 | 150.75 | 38.25 | 245.50 | 0.6529 | 611.0 | 479.6 | |
| 0.00 | 1.80 | 0.00 | 1.20 | -19.57 | 151.22 | 38.72 | 242.05 | 0.6695 | 521.0 | 388.8 | |
| 0.63 | 2.52 | 0.42 | 1.66 | -19.03 | 150.82 | 38.32 | 242.61 | 0.6625 | 601.3 | 557.0 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -17.45 | 150.41 | 37.92 | 244.69 | 0.6507 | 832.0 | 687.9 | |
| 1.44 | 4.33 | 0.95 | 2.86 | -19.35 | 150.83 | 38.33 | 242.16 | 0.6640 | 617.2 | 533.2 | |
| 0.00 | 1.89 | 0.00 | 1.23 | -17.64 | 150.38 | 37.88 | 244.40 | 0.6512 | 701.0 | 573.2 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -18.56 | 150.53 | 38.03 | 243.14 | 0.6570 | 622.0 | 576.1 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -17.71 | 150.11 | 37.62 | 244.17 | 0.6483 | 769.0 | 669.7 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -19.39 | 150.51 | 38.01 | 241.95 | 0.6605 | 128.0 | 256.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -17.99 | 150.06 | 37.57 | 243.73 | 0.6489 | 620.0 | 500.1 | |
| 1.53 | 21.27 | 1.00 | 13.92 | -19.07 | 150.26 | 37.76 | 242.27 | 0.6562 | 970.1 | 666.1 | |
| 5.77 | -14.00 | 3.78 | -14.00 | -19.33 | 150.21 | 37.71 | 241.88 | 0.6567 | 860.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -20.58 | 150.35 | 37.86 | 240.19 | 0.6644 | 460.0 | 387.6 | |
| 3.42 | -14.00 | 2.23 | -14.00 | -19.33 | 149.88 | 37.39 | 241.70 | 0.6530 | 826.6 | 999999 | |
| 0.00 | 3.78 | 0.00 | 2.40 | -16.02 | 149.05 | 36.55 | 246.17 | 0.6280 | 683.0 | 568.9 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -17.44 | 149.36 | 36.87 | 244.20 | 0.6380 | 132.0 | 157.7 | |
| 0.72 | 3.15 | 0.46 | 2.03 | -17.82 | 149.33 | 36.84 | 243.63 | 0.6394 | 832.8 | 628.3 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -15.59 | 148.80 | 36.30 | 246.72 | 0.6231 | 648.0 | 619.3 | |
| 0.00 | 2.97 | 0.00 | 1.88 | -15.90 | 148.75 | 36.25 | 246.21 | 0.6237 | 691.0 | 710.2 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -17.48 | 148.82 | 36.32 | 243.87 | 0.6316 | -529.0 | -521.3 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -17.89 | 148.79 | 36.30 | 243.24 | 0.6332 | 742.0 | 580.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -18.46 | 148.81 | 36.32 | 242.41 | 0.6361 | 620.0 | 570.2 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -19.00 | 148.91 | 36.41 | 241.67 | 0.6399 | 254.0 | 226.6 | |
| 0.00 | 2.07 | 0.00 | 1.33 | -19.32 | 148.71 | 36.21 | 241.09 | 0.6392 | 734.0 | 584.2 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -19.13 | 148.46 | 35.97 | 241.22 | 0.6353 | 674.0 | 448.9 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -18.91 | 148.33 | 35.83 | 241.47 | 0.6326 | -252.0 | -244.4 | |
| 0.00 | 2.25 | 0.00 | 1.42 | -17.52 | 147.92 | 35.43 | 243.33 | 0.6208 | -682.0 | -515.4 | |
| 0.45 | 2.43 | 0.29 | 1.55 | -19.11 | 148.10 | 35.60 | 241.06 | 0.6309 | 739.2 | 471.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.62 | 147.59 | 35.10 | 243.00 | 0.6173 | -561.0 | -456.4 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -18.98 | 147.83 | 35.34 | 241.09 | 0.6270 | 715.0 | 609.3 | |
| 3.87 | 13.61 | 2.42 | 8.50 | -17.95 | 146.96 | 34.47 | 242.14 | 0.6112 | -717.0 | -271.2 | |
| 0.99 | -34.00 | 0.62 | -34.00 | -18.17 | 146.94 | 34.44 | 241.79 | 0.6120 | -539.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -18.46 | 146.81 | 34.31 | 241.28 | 0.6120 | 749.0 | 594.3 | |
| 0.00 | 3.87 | 0.00 | 2.45 | -20.11 | 147.13 | 34.63 | 239.00 | 0.6248 | 790.0 | 580.8 | |
| 0.00 | 2.16 | 0.00 | 1.34 | -17.92 | 146.53 | 34.04 | 241.93 | 0.6058 | 527.0 | 514.5 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -18.53 | 146.51 | 34.02 | 241.00 | 0.6087 | 760.0 | 692.0 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -18.94 | 146.57 | 34.07 | 240.41 | 0.6117 | 725.0 | 621.3 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -18.62 | 146.30 | 33.81 | 240.72 | 0.6067 | 840.0 | 752.5 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -20.31 | 146.67 | 34.17 | 238.42 | 0.6205 | 730.0 | 694.7 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -17.97 | 145.47 | 32.97 | 241.21 | 0.5929 | 647.0 | 453.1 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -17.76 | 144.97 | 32.47 | 241.23 | 0.5855 | 943.0 | 792.4 | |
| 0.00 | 3.78 | 0.00 | 2.31 | -18.23 | 144.88 | 32.38 | 240.42 | 0.5871 | 804.0 | 707.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -17.86 | 144.54 | 32.04 | 240.79 | 0.5807 | 807.0 | 704.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -19.22 | 144.71 | 32.21 | 238.77 | 0.5908 | 711.0 | 645.4 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -19.19 | 144.51 | 32.02 | 238.69 | 0.5883 | 806.0 | 736.4 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -19.29 | 144.50 | 32.00 | 238.53 | 0.5887 | 693.0 | 677.6 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -15.98 | 143.37 | 30.87 | 243.08 | 0.5554 | 630.0 | 596.9 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -22.69 | 143.04 | 30.54 | 232.34 | 0.5944 | 442.0 | 524.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -19.91 | 140.71 | 28.21 | 234.62 | 0.5472 | 663.0 | 602.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
