SDO HMI 2014-05-23 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.37 | 289.72 | 46.82 | 170.63 | -11.09 | 79.98 | -31.42 | 108.17 | 0.5393 | -25.6 | -1.0 | |
|
previous
or next observation for the same group /

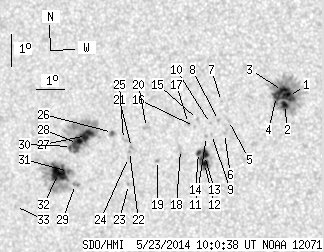

back to the solar disc SDO HMI 2014-05-23 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.46 | 91.90 | 5.29 | 51.37 | -9.92 | 84.92 | -26.48 | 108.38 | 0.4647 | 1254.2 | 449.9 | |
| 2.97 | -1.00 | 1.66 | -1.00 | -10.16 | 84.76 | -26.64 | 108.79 | 0.4681 | 894.0 | 999999 | |
| 6.76 | -1.00 | 3.78 | -1.00 | -9.73 | 84.73 | -26.67 | 107.89 | 0.4668 | 1071.9 | 999999 | |
| 3.87 | -1.00 | 2.17 | -1.00 | -9.91 | 84.51 | -26.89 | 108.13 | 0.4708 | 795.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -10.63 | 82.76 | -28.64 | 108.61 | 0.4990 | 795.0 | 651.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -11.02 | 82.58 | -28.82 | 109.28 | 0.5033 | 790.0 | 669.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -10.04 | 82.57 | -28.83 | 107.38 | 0.4995 | 643.0 | 508.2 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -10.62 | 82.41 | -28.99 | 108.42 | 0.5041 | 898.0 | 730.9 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -11.05 | 82.11 | -29.29 | 109.08 | 0.5100 | 851.0 | 771.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -10.71 | 82.12 | -29.28 | 108.44 | 0.5086 | 821.0 | 622.1 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -11.11 | 81.93 | -29.47 | 109.09 | 0.5129 | 737.0 | 623.7 | |
| 5.05 | 24.06 | 2.92 | 13.91 | -11.94 | 81.76 | -29.64 | 110.55 | 0.5188 | 847.9 | 658.9 | |
| 6.04 | -12.00 | 3.49 | -12.00 | -11.69 | 81.79 | -29.61 | 110.11 | 0.5173 | 1015.2 | 999999 | |
| 1.80 | -12.00 | 1.04 | -12.00 | -11.59 | 81.59 | -29.81 | 109.83 | 0.5197 | 701.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -10.58 | 81.67 | -29.73 | 107.97 | 0.5145 | 674.0 | 531.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -10.79 | 81.54 | -29.86 | 108.30 | 0.5172 | 618.0 | 490.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -10.70 | 81.33 | -30.07 | 108.03 | 0.5197 | 808.0 | 669.8 | |
| 0.00 | 3.78 | 0.00 | 2.20 | -11.49 | 80.95 | -30.45 | 109.31 | 0.5282 | 166.0 | 332.2 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -11.82 | 80.08 | -31.32 | 109.46 | 0.5417 | 769.0 | 569.4 | |
| 0.00 | 2.79 | 0.00 | 1.64 | -10.80 | 79.81 | -31.59 | 107.51 | 0.5417 | -291.0 | -372.1 | |
| 0.00 | 1.89 | 0.00 | 1.12 | -11.40 | 79.19 | -32.21 | 108.31 | 0.5525 | -889.0 | -738.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -11.52 | 79.10 | -32.30 | 108.48 | 0.5542 | -823.0 | -747.2 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -12.54 | 78.92 | -32.48 | 110.17 | 0.5606 | -737.0 | -574.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -11.71 | 79.04 | -32.36 | 108.78 | 0.5558 | -669.0 | -560.6 | |
| 0.00 | 2.16 | 0.00 | 1.29 | -11.15 | 78.92 | -32.48 | 107.75 | 0.5553 | -687.0 | -536.8 | |
| 0.90 | 2.61 | 0.54 | 1.56 | -10.93 | 78.55 | -32.85 | 107.21 | 0.5597 | -851.2 | -734.8 | |
| 10.54 | 74.42 | 6.36 | 45.02 | -11.00 | 77.57 | -33.83 | 106.95 | 0.5734 | -1056.4 | -387.7 | |
| 10.18 | -27.00 | 6.18 | -27.00 | -11.24 | 77.20 | -34.20 | 107.21 | 0.5792 | -893.3 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.82 | -12.51 | 76.95 | -34.45 | 109.21 | 0.5871 | -817.0 | -704.8 | |
| 1.98 | -27.00 | 1.21 | -27.00 | -11.33 | 76.97 | -34.43 | 107.27 | 0.5828 | -669.3 | 999999 | |
| 1.35 | 68.11 | 0.83 | 41.91 | -12.10 | 76.74 | -34.66 | 108.46 | 0.5884 | -1056.7 | -288.9 | |
| 18.47 | -31.00 | 11.35 | -31.00 | -12.16 | 76.36 | -35.04 | 108.39 | 0.5938 | -968.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -13.15 | 74.53 | -36.87 | 109.26 | 0.6211 | -631.0 | -556.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
