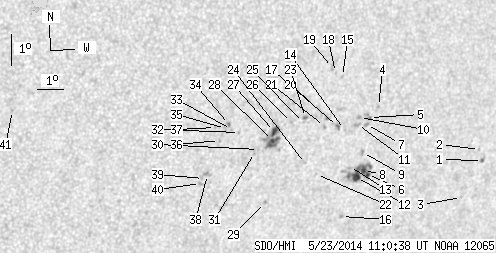

SDO HMI 2014-05-23 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.02 | 109.49 | 11.29 | 71.65 | -18.38 | 148.80 | 37.95 | 243.26 | 0.6548 | 402.5 | 414.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 2.52 | 0.46 | 1.84 | -18.67 | 155.88 | 45.03 | 245.87 | 0.7366 | 594.1 | 450.8 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -18.33 | 155.63 | 44.78 | 246.24 | 0.7328 | 706.0 | 563.2 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -19.87 | 155.34 | 44.49 | 244.12 | 0.7348 | -656.0 | -524.5 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -17.05 | 150.88 | 40.03 | 246.19 | 0.6744 | 490.0 | 461.5 | |
| 0.36 | 3.42 | 0.24 | 2.28 | -17.41 | 150.60 | 39.75 | 245.57 | 0.6724 | 627.8 | 616.4 | |
| 1.62 | 30.90 | 1.10 | 20.82 | -19.21 | 151.01 | 40.16 | 243.22 | 0.6845 | 552.5 | 658.5 | |
| 0.00 | 1.98 | 0.00 | 1.32 | -17.63 | 150.53 | 39.68 | 245.22 | 0.6725 | 599.0 | 464.0 | |
| 2.61 | -6.00 | 1.76 | -6.00 | -19.09 | 150.81 | 39.96 | 243.30 | 0.6817 | 878.9 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.57 | -18.52 | 150.61 | 39.75 | 244.00 | 0.6770 | 743.0 | 634.7 | |
| 0.00 | 1.89 | 0.00 | 1.26 | -17.41 | 150.19 | 39.34 | 245.38 | 0.6676 | 876.0 | 753.0 | |
| 0.00 | 2.70 | 0.00 | 1.79 | -17.63 | 150.16 | 39.31 | 245.05 | 0.6682 | 727.0 | 658.5 | |
| 5.32 | -6.00 | 3.58 | -6.00 | -19.31 | 150.58 | 39.73 | 242.87 | 0.6801 | 845.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -18.97 | 150.19 | 39.34 | 243.17 | 0.6741 | 283.0 | 279.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -17.80 | 149.67 | 38.82 | 244.59 | 0.6630 | 332.0 | 399.4 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -16.14 | 149.18 | 38.33 | 246.79 | 0.6505 | 644.0 | 513.9 | |
| 0.00 | 1.62 | 0.00 | 1.10 | -20.57 | 150.33 | 39.48 | 241.02 | 0.6827 | 618.0 | 478.9 | |
| 0.54 | 2.25 | 0.36 | 1.48 | -17.71 | 149.36 | 38.51 | 244.58 | 0.6590 | 870.0 | 749.1 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -16.02 | 148.87 | 38.02 | 246.84 | 0.6462 | 517.0 | 585.3 | |
| 0.00 | 2.25 | 0.00 | 1.45 | -15.86 | 148.72 | 37.87 | 247.00 | 0.6437 | 666.0 | 602.0 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -17.47 | 148.89 | 38.04 | 244.71 | 0.6524 | -629.0 | -450.1 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -17.72 | 148.83 | 37.98 | 244.32 | 0.6528 | 742.0 | 660.3 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -19.24 | 148.91 | 38.05 | 242.16 | 0.6604 | 670.0 | 527.6 | |
| 0.45 | 2.07 | 0.29 | 1.33 | -17.45 | 148.00 | 37.15 | 244.31 | 0.6416 | -692.6 | -447.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -18.90 | 148.37 | 37.51 | 242.37 | 0.6525 | 698.0 | 565.8 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -17.61 | 147.96 | 37.11 | 244.06 | 0.6418 | -434.0 | -307.3 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -17.61 | 147.48 | 36.63 | 243.81 | 0.6360 | -579.0 | -395.9 | |
| 4.05 | 21.89 | 2.58 | 13.94 | -17.91 | 146.88 | 36.03 | 243.05 | 0.6301 | -846.3 | -76.8 | |
| 1.44 | -27.00 | 0.92 | -27.00 | -18.19 | 146.87 | 36.01 | 242.62 | 0.6313 | -533.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -20.17 | 147.09 | 36.24 | 239.86 | 0.6439 | 810.0 | 594.3 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -18.49 | 146.38 | 35.53 | 241.92 | 0.6269 | 774.0 | 687.5 | |
| 0.00 | 2.07 | 0.00 | 1.31 | -18.59 | 146.25 | 35.40 | 241.70 | 0.6258 | 771.0 | 608.3 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -17.96 | 145.52 | 34.67 | 242.22 | 0.6138 | 602.0 | 479.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -17.87 | 145.19 | 34.34 | 242.17 | 0.6093 | 473.0 | 523.7 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -17.72 | 145.08 | 34.22 | 242.34 | 0.6071 | 863.0 | 779.8 | |
| 0.00 | 3.87 | 0.00 | 2.41 | -17.84 | 144.95 | 34.10 | 242.07 | 0.6062 | 625.0 | 575.7 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -18.23 | 144.80 | 33.95 | 241.40 | 0.6064 | 739.0 | 635.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -17.82 | 144.56 | 33.71 | 241.88 | 0.6012 | 702.0 | 616.3 | |
| 0.00 | 3.69 | 0.00 | 2.30 | -19.31 | 144.58 | 33.73 | 239.62 | 0.6097 | 735.0 | 686.4 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -19.44 | 144.46 | 33.61 | 239.34 | 0.6090 | 624.0 | 643.9 | |
| 0.00 | 1.98 | 0.00 | 1.24 | -19.60 | 144.38 | 33.53 | 239.05 | 0.6089 | 625.0 | 562.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.38 | 137.00 | 26.15 | 237.00 | 0.5035 | -762.0 | -598.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
