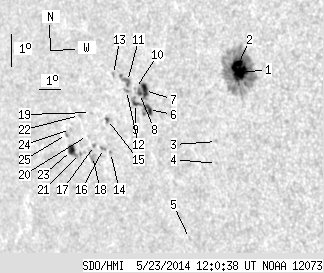

SDO HMI 2014-05-23 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.69 | 195.65 | 32.46 | 141.00 | -11.09 | 64.45 | -45.85 | 103.73 | 0.7261 | 386.7 | 201.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.94 | 120.98 | 11.69 | 83.57 | -10.60 | 66.76 | -43.54 | 103.52 | 0.6987 | 952.1 | 289.2 | |
| 6.22 | -1.00 | 4.29 | -1.00 | -10.32 | 66.77 | -43.53 | 103.12 | 0.6981 | 1065.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.96 | -12.70 | 65.34 | -44.97 | 106.13 | 0.7199 | 476.0 | 440.7 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -13.38 | 65.18 | -45.13 | 107.02 | 0.7233 | 583.0 | 469.9 | |
| 0.00 | 1.35 | 0.00 | 1.01 | -15.69 | 63.32 | -46.98 | 109.61 | 0.7495 | 243.0 | 262.7 | |
| 4.14 | 30.90 | 3.09 | 23.14 | -11.65 | 62.50 | -47.80 | 104.11 | 0.7504 | 670.3 | 525.6 | |
| 5.95 | -6.00 | 4.43 | -6.00 | -11.06 | 62.45 | -47.85 | 103.32 | 0.7500 | 878.5 | 999999 | |
| 1.35 | -6.00 | 1.01 | -6.00 | -11.15 | 62.20 | -48.10 | 103.39 | 0.7530 | 727.6 | 999999 | |
| 1.80 | -6.00 | 1.36 | -6.00 | -11.45 | 61.94 | -48.36 | 103.75 | 0.7563 | 577.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -10.99 | 62.05 | -48.26 | 103.16 | 0.7545 | 315.0 | 355.1 | |
| 1.89 | 6.67 | 1.43 | 5.05 | -10.77 | 61.72 | -48.58 | 102.81 | 0.7578 | 603.8 | 364.5 | |
| 0.00 | 2.25 | 0.00 | 1.71 | -11.04 | 61.61 | -48.69 | 103.15 | 0.7594 | 357.0 | 335.8 | |
| 0.00 | 1.53 | 0.00 | 1.17 | -10.54 | 61.11 | -49.19 | 102.41 | 0.7642 | 303.0 | 262.9 | |
| 0.00 | 1.17 | 0.00 | 0.92 | -12.94 | 60.37 | -49.93 | 105.38 | 0.7758 | -675.0 | -593.0 | |
| 1.08 | 2.61 | 0.84 | 2.03 | -11.92 | 60.50 | -49.80 | 104.09 | 0.7728 | 376.8 | 260.6 | |
| 0.00 | 2.34 | 0.00 | 1.84 | -12.81 | 60.07 | -50.23 | 105.16 | 0.7788 | -697.0 | -550.7 | |
| 0.00 | 1.53 | 0.00 | 1.21 | -12.70 | 59.66 | -50.65 | 104.95 | 0.7830 | -712.0 | -659.8 | |
| 0.00 | 6.31 | 0.00 | 5.03 | -13.04 | 59.46 | -50.84 | 105.34 | 0.7856 | -753.0 | -558.2 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -11.68 | 59.73 | -50.57 | 103.67 | 0.7807 | -283.0 | -251.0 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -12.39 | 59.40 | -50.91 | 104.51 | 0.7853 | -502.0 | -522.4 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -12.93 | 58.89 | -51.41 | 105.11 | 0.7913 | -595.0 | -517.2 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -11.76 | 59.17 | -51.14 | 103.68 | 0.7868 | -641.0 | -575.9 | |
| 5.32 | 9.01 | 4.32 | 7.32 | -12.83 | 58.47 | -51.83 | 104.91 | 0.7955 | -450.2 | -306.5 | |
| 0.00 | 0.99 | 0.00 | 0.80 | -12.18 | 58.60 | -51.70 | 104.12 | 0.7932 | -580.0 | -471.0 | |
| 0.00 | 1.44 | 0.00 | 1.17 | -12.33 | 58.36 | -51.94 | 104.27 | 0.7959 | -519.0 | -498.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
