SDO HMI 2014-05-23 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.66 | 79.71 | 15.63 | 44.98 | -13.65 | 136.44 | 26.14 | 243.79 | 0.4788 | 109.0 | 191.8 | |
|
previous
or next observation for the same group /

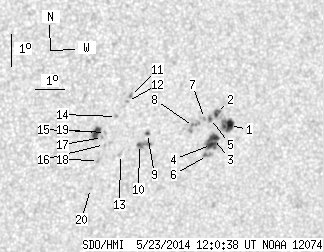

back to the solar disc SDO HMI 2014-05-23 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.31 | 21.44 | 3.60 | 12.23 | -13.39 | 138.13 | 27.82 | 245.61 | 0.5006 | 872.6 | 764.2 | |
| 2.61 | -1.00 | 1.48 | -1.00 | -13.02 | 137.62 | 27.32 | 245.96 | 0.4916 | 962.2 | 999999 | |
| 5.22 | 15.04 | 2.98 | 8.57 | -13.80 | 137.61 | 27.31 | 244.48 | 0.4958 | 1078.0 | 682.0 | |
| 6.13 | -3.00 | 3.49 | -3.00 | -13.98 | 137.57 | 27.26 | 244.09 | 0.4962 | 967.3 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.38 | -13.18 | 137.43 | 27.13 | 245.52 | 0.4898 | 992.0 | 851.5 | |
| 0.00 | 4.23 | 0.00 | 2.41 | -14.33 | 137.47 | 27.17 | 243.38 | 0.4969 | 790.0 | 675.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -13.18 | 137.22 | 26.92 | 245.36 | 0.4869 | 892.0 | 736.1 | |
| 0.00 | 6.40 | 0.00 | 3.62 | -13.43 | 136.87 | 26.57 | 244.62 | 0.4834 | 650.0 | 779.7 | |
| 0.81 | 1.71 | 0.45 | 0.96 | -13.67 | 135.30 | 25.00 | 242.91 | 0.4631 | -639.2 | -485.6 | |
| 1.08 | 8.02 | 0.60 | 4.48 | -14.01 | 135.06 | 24.76 | 242.02 | 0.4620 | -748.1 | -553.2 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -12.50 | 134.59 | 24.29 | 244.69 | 0.4461 | -866.0 | -713.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -12.68 | 134.51 | 24.20 | 244.23 | 0.4460 | -783.0 | -688.7 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -14.33 | 134.44 | 24.14 | 240.83 | 0.4557 | -861.0 | -542.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -13.15 | 134.18 | 23.88 | 242.98 | 0.4443 | -621.0 | -474.9 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -13.65 | 133.86 | 23.55 | 241.65 | 0.4430 | -758.0 | -580.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -14.02 | 133.86 | 23.56 | 240.90 | 0.4456 | -407.0 | -391.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -13.81 | 133.77 | 23.47 | 241.25 | 0.4429 | -745.0 | -636.7 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -14.52 | 133.71 | 23.41 | 239.75 | 0.4471 | -853.0 | -769.0 | |
| 5.50 | 7.84 | 3.03 | 4.32 | -13.65 | 133.55 | 23.25 | 241.36 | 0.4388 | -1047.7 | -843.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -15.40 | 133.54 | 23.23 | 237.84 | 0.4511 | -803.0 | -649.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
