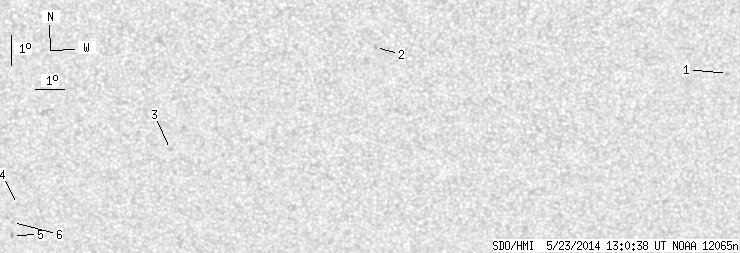

SDO HMI 2014-05-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.65 | 0.00 | 4.32 | -28.18 | 103.57 | -6.18 | 170.14 | 0.4787 | -246.5 | -190.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-23 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.84 | -25.37 | 120.79 | 11.04 | 203.28 | 0.4395 | 580.0 | 505.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -24.53 | 108.90 | -0.85 | 178.01 | 0.3899 | 971.0 | 845.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -27.91 | 101.80 | -7.95 | 164.55 | 0.4604 | -954.0 | -707.5 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -29.75 | 96.21 | -13.54 | 156.65 | 0.5151 | -657.0 | -544.7 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -30.83 | 95.87 | -13.88 | 157.09 | 0.5313 | -785.0 | -680.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -30.38 | 95.94 | -13.81 | 156.80 | 0.5250 | -634.0 | -519.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
